PLT-01

Common Mode Chokes Overview

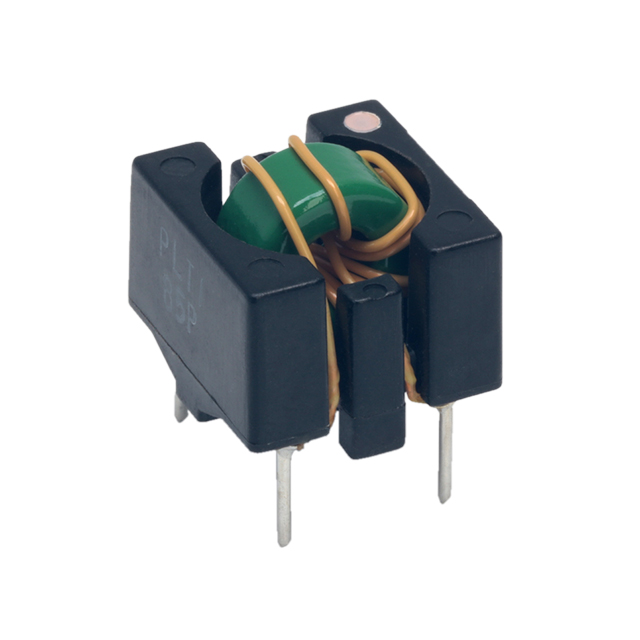

The KEMET PLT-01 is a pulse transformer designed for Power Line Communication (PLC) applications. It features through-hole mounting with an 8-pin configuration and supports up to 32 circuits. The component operates at a voltage rating of 264VAC. Physical dimensions include a maximum length of 13.5mm, width of 12.3mm, and height of 12.5mm.

Common Mode Chokes Feature Summary

• Engineered specifically for Power Line Communication signal transmission
• Supports integration into systems requiring up to 32 circuit channels
• Constructed for robust through-hole PCB mounting

Common Mode Chokes Applications

• Power Line Communication modules
• Smart metering infrastructure
• Industrial automation control systems

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm pinout compatibility and insulation ratings. Ensure the 264VAC rating aligns with your system's operational requirements. Cross-reference mechanical drawings for footprint clearance before finalizing board layout.

Common Mode Chokes Selection Notes

Select this component when designing PLC interfaces requiring isolation between power lines and communication signals. Consider the 8-pin form factor for space-constrained through-hole designs. Validate thermal performance under expected load conditions.

Common Mode Chokes Part Context

This part belongs to KEMET's PLT series of pulse transformers. These components are specialized for coupling high-frequency data signals onto AC power lines while maintaining electrical isolation. The series offers standardized footprints for easy integration into existing power electronics architectures.

Common Mode Chokes Replacement Considerations

Consult official substitution lists for equivalent pulse transformers with matching 8-pin configurations and 264VAC ratings. Verify that any alternative maintains identical magnetic characteristics and physical dimensions for direct replacement.
