PLT-02

Common Mode Chokes Overview

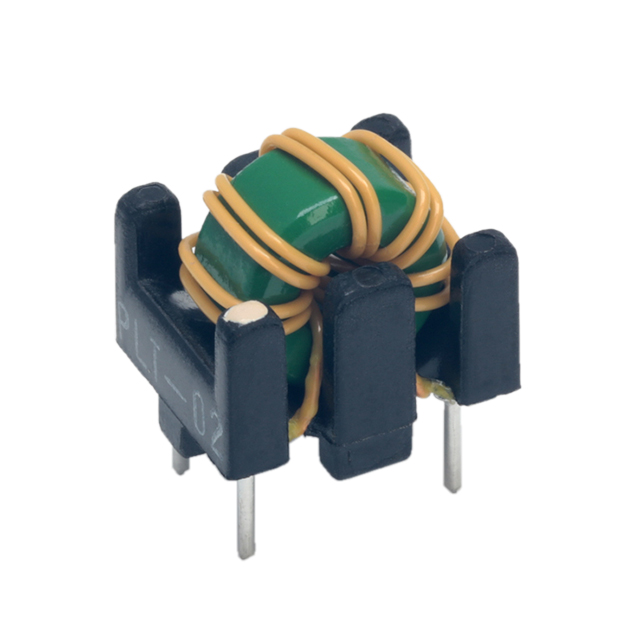

The KEMET PLT-02 is a pulse transformer designed for PLC applications, featuring a vertical package with four PC pins. It operates as a common mode choke with a minimum inductance of 7.5 µH at 100 kHz and a DC resistance of 55 mOhm. The component supports a current rating of 300 mA and utilizes through-hole mounting technology.

Common Mode Chokes Feature Summary

• Vertical package configuration with four-pin connections
• Designed specifically for PLC applications
• Functions as a common mode choke with defined inductance characteristics

Common Mode Chokes Applications

• PLC systems
• Low current signal processing
• Common mode noise suppression

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm electrical parameters such as inductance tolerance and DC resistance values. Ensure the vertical package dimensions align with PCB layout requirements. Confirm that the through-hole mounting style matches assembly capabilities. Check for any specific handling instructions related to the transformer core material.

Common Mode Chokes Selection Notes

Select this component when a vertical form factor is required for space-constrained PLC designs. Consider the 300 mA current rating and 55 mOhm DC resistance for power loss calculations. Verify compatibility with 100 kHz operating frequencies. Ensure the four-pin configuration fits the intended circuit topology.

Common Mode Chokes Part Context

The PLT-02 belongs to KEMET's PLT series of pulse transformers. These components are engineered for industrial control environments, offering reliable performance in PLC networks. The series emphasizes compact vertical packaging to facilitate dense board layouts while maintaining electrical isolation and signal integrity.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
