PLT10HH101150PNL

Common Mode Chokes Overview

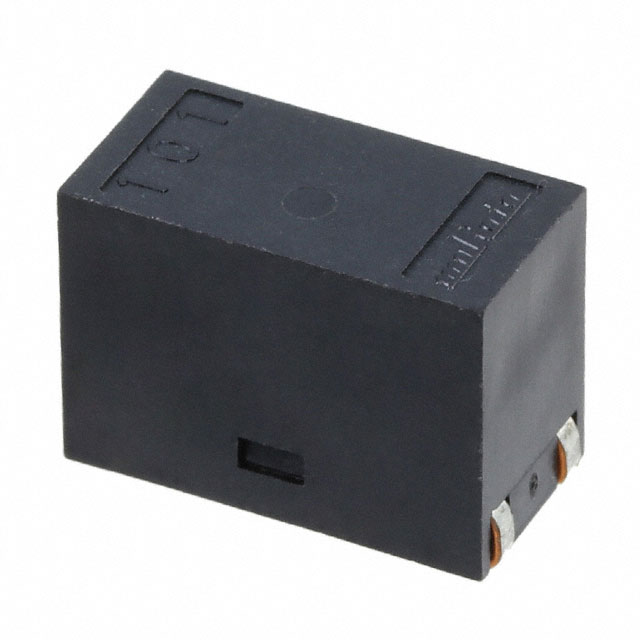

The Murata PLT10HH101150PNL is a surface-mount common mode choke designed for power line applications. It features two lines with a rated current of 15A and a DC resistance (DCR) maximum of 2.3 milliohms. The component has a DC voltage rating of 300V and an impedance of 100 Ohms at 10 MHz. It operates within a temperature range of -55°C to 125°C. The package dimensions are 12.90mm in length, 9.10mm in width, and a maximum height of 9.40mm.

Common Mode Chokes Feature Summary

• Designed for high-current power line filtering with low DC resistance
• Automotive-grade reliability certified under AEC-Q200 standards
• Vertical surface mount configuration for compact PCB integration

Common Mode Chokes Applications

• Power supply input filtering
• Automotive electronic systems
• Industrial control circuits

Common Mode Chokes Procurement Notes

Verify the complete part number including suffixes to ensure correct packaging and specifications. Confirm that the required AEC-Q200 qualification aligns with automotive application needs. Check datasheet details for thermal management requirements given the 15A current rating. Ensure PCB footprint matches the specified vertical package dimensions for proper soldering and mechanical stability.

Common Mode Chokes Selection Notes

Select this component when high current handling up to 15A is required alongside effective common mode noise suppression. The low DCR minimizes power loss in high-current paths. Consider the 300V DC rating for appropriate voltage isolation. The wide operating temperature range supports harsh environment deployment. Verify impedance characteristics at target frequencies to ensure adequate EMI attenuation.

Common Mode Chokes Part Context

This component belongs to the PLT10HH series of common mode chokes from Murata Electronics. The series is characterized by robust construction suitable for demanding power applications. The specific model integrates high permeability materials to achieve specified impedance levels while maintaining low insertion loss. It represents a solution for electromagnetic interference reduction in modern electronic designs.

Common Mode Chokes Replacement Considerations

Consult official Murata documentation for direct cross-reference or alternative part numbers within the PLT10HH family. Verify compatibility of pinout, electrical parameters, and mechanical dimensions before substitution. Ensure any replacement maintains AEC-Q200 certification if used in automotive contexts.
