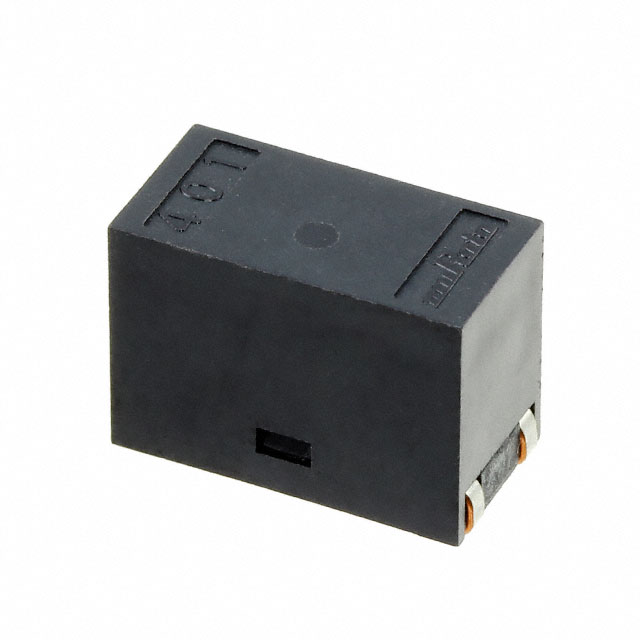

PLT10HH401100PNL

$4.11

Description：CMC 10A 2LN 400 OHM SMD AEC-Q200
Series：PLT10H
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:36b9cbbd3202 Category: Common Mode Chokes Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PLT10HH401100PNL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 10A 2LN 400 OHM SMD AEC-Q200. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PLT10HH401100PNL

Description：CMC 10A 2LN 400 OHM SMD AEC-Q200
Series：PLT10H
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：10A
DC Resistance (DCR) (Max)：4.1mOhm
Voltage Rating - DC：100V
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.508" L x 0.358" W (12.90mm x 9.10mm)
Height (Max)：0.370" (9.40mm)
Package / Case：Vertical, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：400 Ohms @ 10 MHz

Common Mode Chokes datasheet and documents for PLT10HH401100PNL

PLT10HH401100PNL

Common Mode Chokes Overview

The PLT10HH401100PNL is a two-line common mode choke from Murata Electronics, designed for surface mount PCB assembly. It features an inductance of 6 µH and offers an impedance of 400 Ohms at 10 MHz. The component supports a maximum DC current of 10 A with a maximum DC resistance of 3.6 mOhms. It operates within a temperature range of -55°C to +125°C and measures 12.9 mm in length by 6.6 mm in width.

Common Mode Chokes Feature Summary

Provides effective electromagnetic interference suppression for dual power lines
Supports high current handling capabilities suitable for power applications
Designed for automated surface mount technology assembly processes

Common Mode Chokes Applications

Automotive electronic systems requiring EMI filtering
Power line noise suppression in industrial equipment
Common mode noise reduction in high-current circuits

Common Mode Chokes Procurement Notes

Verify the specific suffix 'PNL' against official Murata documentation to confirm tape and reel packaging specifications. Ensure the part meets AEC-Q200 automotive qualification requirements if intended for automotive use. Cross-reference the manufacturer part number with authorized distributors to confirm authenticity and availability status before procurement.

Common Mode Chokes Selection Notes

Select this component when a 6 µH inductance and 10 A current rating are required for common mode noise suppression. The 400 Ohm impedance at 10 MHz makes it suitable for higher frequency interference. Consider the SMD package dimensions and operating temperature range to ensure compatibility with the target PCB layout and environmental conditions.

Common Mode Chokes Part Context

This component belongs to the PLT10HH series of common mode chokes manufactured by Murata Electronics. The series is characterized by its block-type construction and suitability for surface mount applications. These filters are engineered to meet stringent automotive reliability standards, specifically AEC-Q200, ensuring performance in demanding environments.
