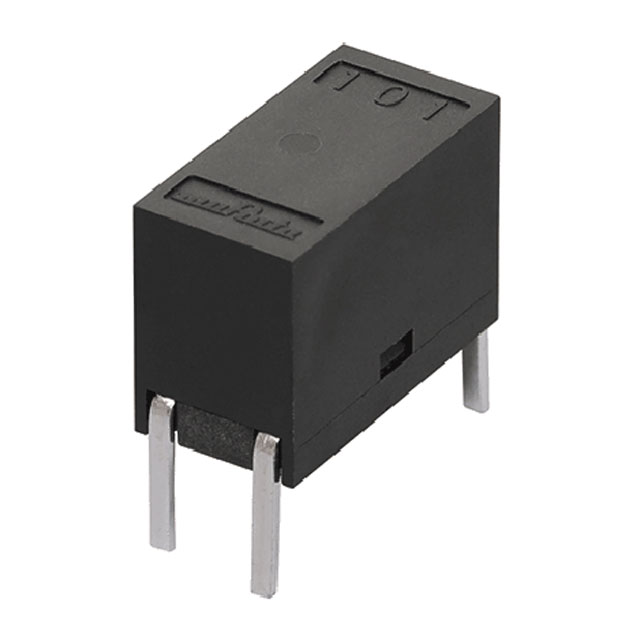

PLT10HN101150P0B

$4.39

Description：CMC 15A 2LN 100 OHM TH
Series：PLT10H
Mfr：Murata Electronics
Package：Bulk

SKU:9704daaeffb0 Category: Common Mode Chokes Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PLT10HN101150P0B is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 15A 2LN 100 OHM TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PLT10HN101150P0B

Description：CMC 15A 2LN 100 OHM TH
Series：PLT10H
Mfr：Murata Electronics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：15A
DC Resistance (DCR) (Max)：2.3mOhm
Voltage Rating - DC：300V
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.508" L x 0.260" W (12.90mm x 6.60mm)
Height (Max)：0.366" (9.30mm)
Package / Case：Vertical, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：100 Ohms @ 10 MHz

Common Mode Chokes datasheet and documents for PLT10HN101150P0B

PLT10HN101150P0B

Common Mode Chokes Overview

The PLT10HN101150P0B is a surface-mount common mode choke from the Murata PLT10HN series. It features two lines with an impedance of 100 Ohms at 10 MHz and a DC resistance (DCR) maximum of 2.3 milliohms. The component supports a rated current of 15A and operates within a temperature range of -55°C to 125°C. Its physical dimensions are 12.90mm in length, 9.10mm in width, and a maximum height of 9.40mm.

Common Mode Chokes Feature Summary

Provides effective electromagnetic interference suppression for dual-line power circuits through high common mode impedance.
Capable of handling high continuous currents up to 15A with minimal resistive voltage drop.
Designed for reliable operation across extreme ambient temperatures ranging from -55°C to 125°C.

Common Mode Chokes Applications

Power supply input filtering for industrial equipment
EMI suppression in automotive electronic control units
Noise reduction in server and data center power distribution systems

Common Mode Chokes Procurement Notes

Verify the specific suffix P0B against official Murata documentation to confirm pin configuration and termination type. Ensure the selected packaging variant matches the assembly line requirements. Cross-reference the full part number with the manufacturer's latest datasheet to validate RoHS compliance status and moisture sensitivity level before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring high current handling capacity alongside significant common mode noise attenuation. The low DCR minimizes power loss and thermal generation in high-current paths. Evaluate the 100 Ohm impedance specification against the target noise frequency spectrum to ensure adequate filtering performance without affecting signal integrity or normal mode signals.

Common Mode Chokes Part Context

This component belongs to the PLT10HN series of surface-mount common mode chokes manufactured by Murata Electronics. The series is engineered for robust performance in demanding environments, offering compact footprints suitable for space-constrained printed circuit board layouts while maintaining high electrical ratings for power applications.
