PLT10HN450180P0B

$4.86

Description：CMC 18A 2LN 45 OHM TH
Series：PLT10HN
Mfr：Murata Electronics
Package：Bulk

SKU:b0d44494ed50 Category: Common Mode Chokes Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

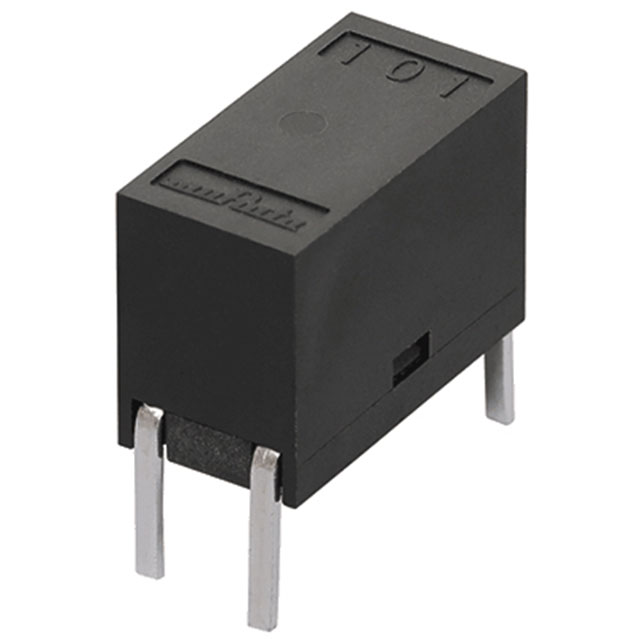

PLT10HN450180P0B is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 18A 2LN 45 OHM TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PLT10HN450180P0B

Description：CMC 18A 2LN 45 OHM TH
Series：PLT10HN
Mfr：Murata Electronics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：18A
DC Resistance (DCR) (Max)：1.8mOhm
Voltage Rating - DC：300V
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.508" L x 0.260" W (12.90mm x 6.60mm)
Height (Max)：0.366" (9.30mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：45 Ohms @ 100 MHz

Common Mode Chokes datasheet and documents for PLT10HN450180P0B

PLT10HN450180P0B

Common Mode Chokes Overview

The PLT10HN450180P0B is a through-hole common mode choke from the Murata PLT10H series. It features an inductance of 800nH and a maximum DC resistance of 1.8mOhms. The component supports a DC current rating of 18A and provides 45 Ohms impedance at 10MHz. Operating temperatures range from -55°C to +125°C, with a physical length of 12.9mm.

Common Mode Chokes Feature Summary

Dual-line common mode filtering capability for noise suppression
High current handling capacity suitable for power line applications
Through-hole mounting configuration for robust mechanical stability

Common Mode Chokes Applications

Power supply input filtering
EMI suppression in industrial equipment
Noise reduction in AC/DC converter circuits

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against official Murata documentation to ensure correct impedance and current ratings. Confirm package type and termination style match design requirements. Cross-reference datasheet values for inductance and DC resistance before integration. Ensure environmental specifications meet operational temperature needs.

Common Mode Chokes Selection Notes

Select this component when high current handling up to 18A is required alongside moderate inductance. The low DC resistance minimizes power loss in high-current paths. Through-hole construction offers durability for vibration-prone environments. Verify impedance characteristics align with target noise frequencies.

Common Mode Chokes Part Context

This part belongs to the Murata PLT10H series of common mode chokes. The series offers various inductance and current ratings for different power applications. These components are designed for effective electromagnetic interference suppression in electronic circuits requiring reliable noise filtering.

Common Mode Chokes Replacement Considerations

Consult official Murata substitution guides for compatible alternatives. Verify equivalent electrical parameters including inductance, current rating, and impedance. Ensure mechanical dimensions and mounting styles match existing board layouts.
