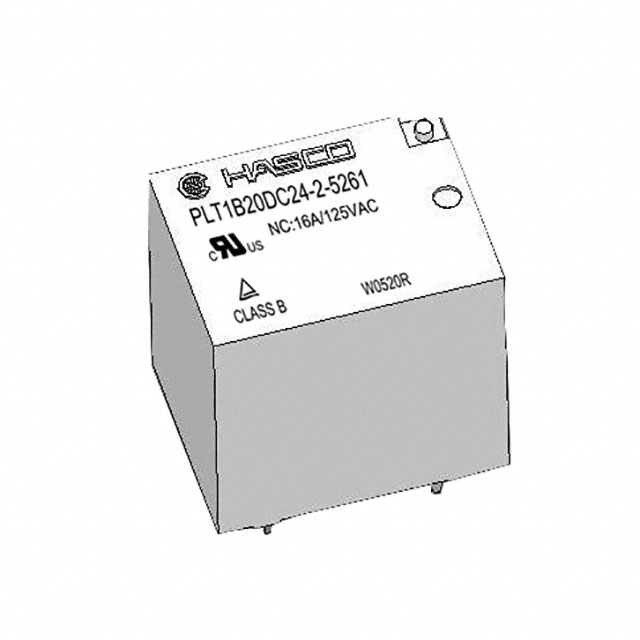

PLT1B20DC24-2-5261

PLT1B20DC24-2-5261 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Hasco Relays. Its product description is RELAY SPST 20A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for PLT1B20DC24-2-5261

• Description：RELAY SPST 20A 24V
• Series：PLT
• Mfr：Hasco Relays
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：SPST-NC (1 Form B)
• Contact Rating (Current)：20 A
• Switching Voltage：277VAC - Max
• Load - Max Switching：-
• Coil Current：15 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：Class B
• Must Operate Voltage：18 VDC
• Must Release Voltage：2.4 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Alloy
• Approval Agency：-
• Relay Type：-
• Grade：-
• Qualification：-
• Operate Time：10 ms
• Release Time：5 ms
