PLT5BPH1015R6SNL

Common Mode Chokes Overview

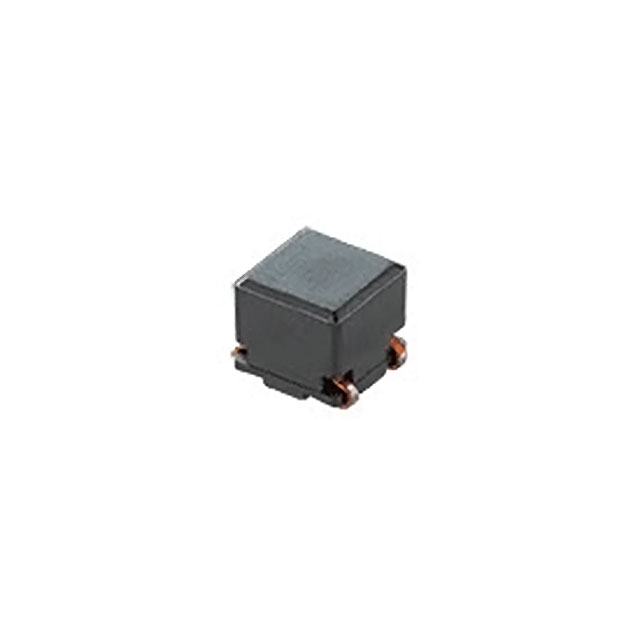

The PLT5BPH1015R6SNL is a wirewound common mode choke coil from Murata Electronics, designed for surface mount applications. It features a 5.0 x 5.0 mm package and operates in environments up to 150°C. The component handles large currents up to 5.6A and provides a maximum common mode impedance of 500Ω at 10MHz. This specific variant offers 100Ω impedance at 10MHz with an 80V rating. It complies with AEC-Q200 standards, making it suitable for automotive power systems.

Common Mode Chokes Feature Summary

• Wirewound construction for high current handling capabilities
• High-temperature resistance up to 150°C
• Automotive grade compliance with AEC-Q200 standard
• Surface mount design for compact integration

Common Mode Chokes Applications

• Automotive power system noise suppression
• High-temperature electronic circuit filtering
• Common mode interference reduction in power lines

Common Mode Chokes Procurement Notes

Verify the complete part number including suffixes such as R6SNL against official Murata documentation to ensure correct impedance and current ratings. Confirm AEC-Q200 certification requirements for your specific automotive application. Check datasheet specifications for DC resistance and saturation current limits before integration into power supply designs.

Common Mode Chokes Selection Notes

Select this component when high thermal stability and robust current handling are required in space-constrained automotive or industrial environments. The wirewound technology supports higher current loads compared to ferrite bead alternatives. Ensure the operating temperature range aligns with the 150°C maximum limit specified for the PLT5BPH series.

Common Mode Chokes Part Context

This component belongs to the Murata PLT5BPH series of wirewound common mode chokes. The series is engineered for demanding applications requiring high reliability and thermal endurance. The PLT5BPH designation indicates the physical footprint and general family characteristics, while specific suffixes define electrical parameters like impedance and voltage ratings.

Common Mode Chokes Replacement Considerations

Consult Murata's official substitution guide for verified equivalents. Cross-reference impedance values at 10MHz and maximum current ratings to ensure functional compatibility. Verify package dimensions and terminal configurations match the existing PCB layout constraints.
