Product Detailed Parameters
- Description：FERRITE BEAD 90 OHM 3612 1LN
- Series：PM2000
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR)
- Filter Type：-
- Number of Lines：1
- Impedance @ Frequency：90 Ohms @ 100 MHz
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：0.9mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：3612 (9131 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.116" (2.94mm)
- Size / Dimension：0.358" L x 0.122" W (9.10mm x 3.10mm)
- Features：-
Download product information
Overview

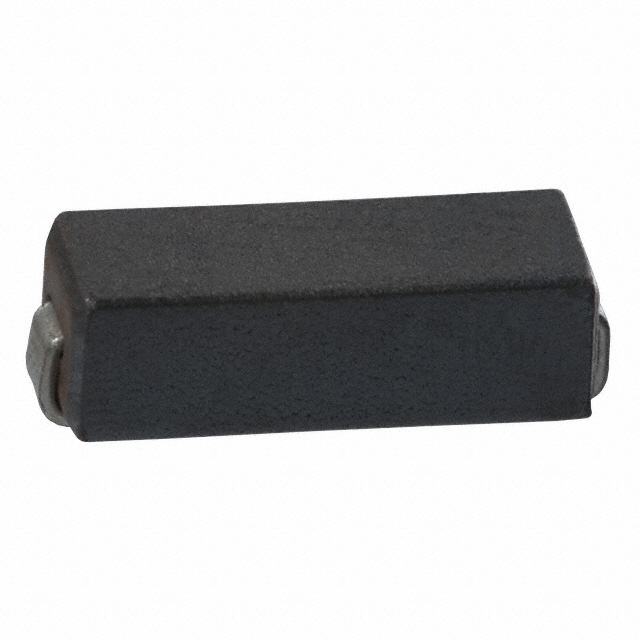

The PM2003-600-RC is a single-line ferrite bead manufactured by Bourns Inc. in a 3612 (9131 Metric) surface-mount package. It provides an impedance of 90 Ohms at 100 MHz with a maximum DC resistance of 0.9 mOhm and a rated current capacity of 5 Amperes.
Feature Summary
- Provides high-frequency noise suppression through ferrite material properties
- Designed for surface-mount assembly on printed circuit boards
- Supports high current applications with low DC resistance
Applications
- High-frequency noise filtering in electronic circuits
- Signal integrity enhancement in power delivery networks
- EMI suppression in compact surface-mount designs
Procurement Notes
Verify the component designation against official manufacturer documentation to confirm specifications. Ensure compatibility with surface-mount assembly processes and thermal requirements. Check for RoHS compliance status if required by project standards. Confirm package dimensions match design constraints.
Selection Notes
Select this component when high-current handling capability is required alongside effective high-frequency attenuation. The low DC resistance minimizes voltage drop in power lines. Evaluate impedance characteristics at target frequencies to ensure adequate noise suppression performance for specific circuit needs.
Part Context
This ferrite bead belongs to Bourns' passive components portfolio, specifically designed for electromagnetic interference suppression. Ferrite beads are commonly used in conjunction with capacitors to form pi-filters or standalone chokes in signal and power lines.
FAQ
What is the impedance value of the PM2003-600-RC?
The impedance is 90 Ohms measured at a frequency of 100 MHz.
What is the maximum rated current for this ferrite bead?
The component has a rated current capacity of 5 Amperes.
