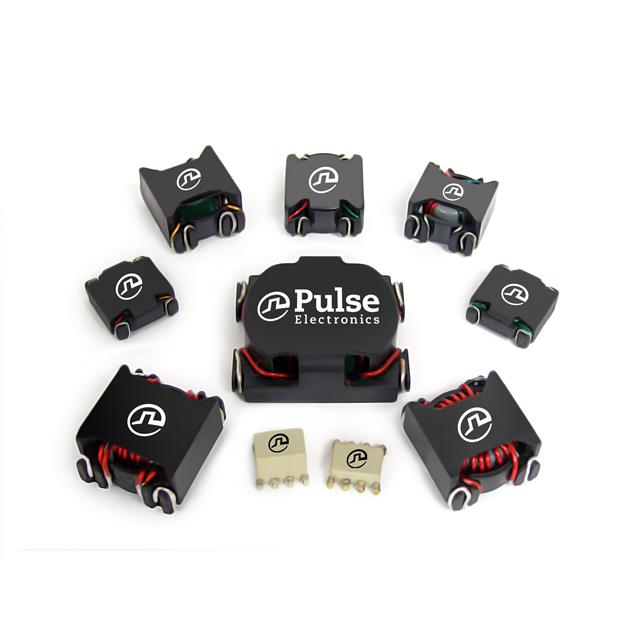

PM2744NLT

$2.36

Description：CMC 4A 2LN SMD AEC-Q200
Series：PM27XXXXNLT
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d6d61f64c36e Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PM2744NLT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 4A 2LN SMD AEC-Q200. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PM2744NLT

Description：CMC 4A 2LN SMD AEC-Q200
Series：PM27XXXXNLT
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：4A
DC Resistance (DCR) (Max)：13.2mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.512" L x 0.512" W (13.00mm x 13.00mm)
Height (Max)：0.220" (5.60mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PM2744NLT

PM2744NLT

Common Mode Chokes Overview

The PM2744NLT is a single-channel surface-mount common mode choke manufactured by Pulse Electronics. It features an inductance of 280 uH and a DC resistance of 13.2 mOhms. The component has an impedance of 1 kOhm and a self-resonant frequency of 2 MHz. It operates within a temperature range of -40°C to +125°C and meets AEC-Q200 automotive qualification standards. The physical dimensions are 13 mm x 13 mm x 5.6 mm.

Common Mode Chokes Feature Summary

AEC-Q200 qualified for automotive reliability
Surface mount PCB installation
Single channel configuration

Common Mode Chokes Applications

Automotive electronic circuits
Common mode noise suppression
Signal line filtering

Common Mode Chokes Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm electrical parameters and package details. Ensure compatibility with target application requirements, including operating temperature ranges and current ratings. Confirm RoHS compliance status through verified datasheets before integration into designs.

Common Mode Chokes Selection Notes

Select this component based on its 280 uH inductance and 13.2 mOhms DCR specifications. Consider the 13x13x5.6 mm footprint for PCB layout constraints. Verify that the 2 MHz self-resonant frequency aligns with the intended noise suppression bandwidth. Ensure the design accommodates the required thermal management for the specified operating temperature range.

Common Mode Chokes Part Context

This component belongs to the SLIC/Shasta series from Pulse Electronics. It is categorized under common mode chokes and filters. The product is designed for surface mount technology applications requiring compact filtering solutions.
