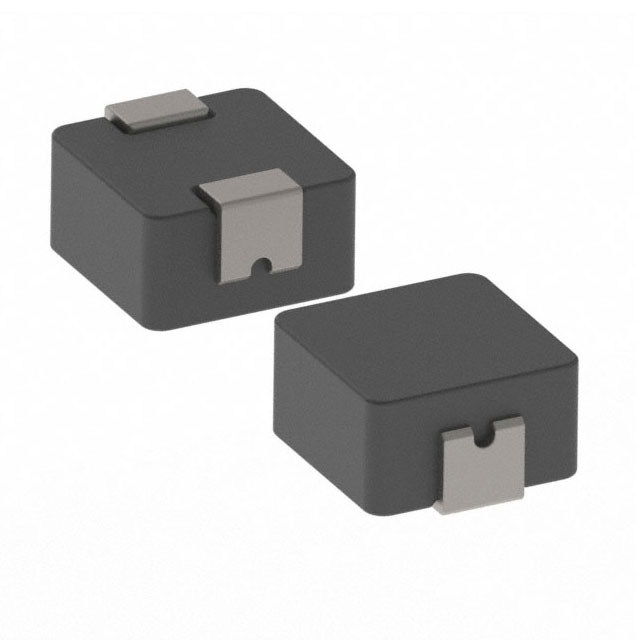

PM4340.102NLT

$0.54

Description：FIXED IND 1UH 7A 14 MOHM SMD
Series：PM4340.XXXNLT
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5f11c2166c47 Category: Fixed Inductors Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PM4340.102NLT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is FIXED IND 1UH 7A 14 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for PM4340.102NLT

Description：FIXED IND 1UH 7A 14 MOHM SMD
Series：PM4340.XXXNLT
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Molded
Material - Core：-
Inductance：1 µH
Tolerance：±20%
Current Rating (Amps)：7:00 AM
Current - Saturation (Isat)：11A
Shielding：Shielded
DC Resistance (DCR)：14mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 155°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.236" L x 0.213" W (6.00mm x 5.40mm)
Height - Seated (Max)：0.118" (3.00mm)
Features：-

Fixed Inductors datasheet and documents for PM4340.102NLT

PM4340.102NLT

Fixed Inductors Overview

The PM4340.102NLT is a shielded, molded surface-mount power inductor from Pulse Electronics. It features an inductance of 1 µH with a tolerance of ±20%. The component supports a maximum rated current of 7 A and a saturation current of 11 A. Its DC resistance is 14 mΩ max. Measuring 6.00mm x 5.40mm x 3.00mm, it operates between -55°C and 155°C. Tested at 100 kHz, it holds AEC-Q200 qualification.

Fixed Inductors Feature Summary

AEC-Q200 qualified for automotive reliability standards
Shielded construction minimizes electromagnetic interference
Molded design provides mechanical stability

Fixed Inductors Applications

Automotive electronic systems
Power supply filtering
DC-DC converter circuits

Fixed Inductors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm electrical characteristics and physical dimensions. Ensure compatibility with automated surface-mount assembly processes. Check for RoHS compliance status relevant to the target market regulations. Confirm that the operating temperature range meets the environmental requirements of the final application.

Fixed Inductors Selection Notes

Select this component when high current handling and low DC resistance are required in a compact footprint. The wide operating temperature range suits demanding environments. Verify that the saturation current exceeds peak circuit demands to prevent performance degradation. Ensure the shielded type aligns with electromagnetic compatibility requirements.

Fixed Inductors Part Context

This component belongs to the PM4340 series of fixed power inductors designed for surface-mount technology. The series offers various inductance values tailored for different power applications. Pulse Electronics manufactures these components to meet stringent automotive quality standards, ensuring consistency across production batches.
