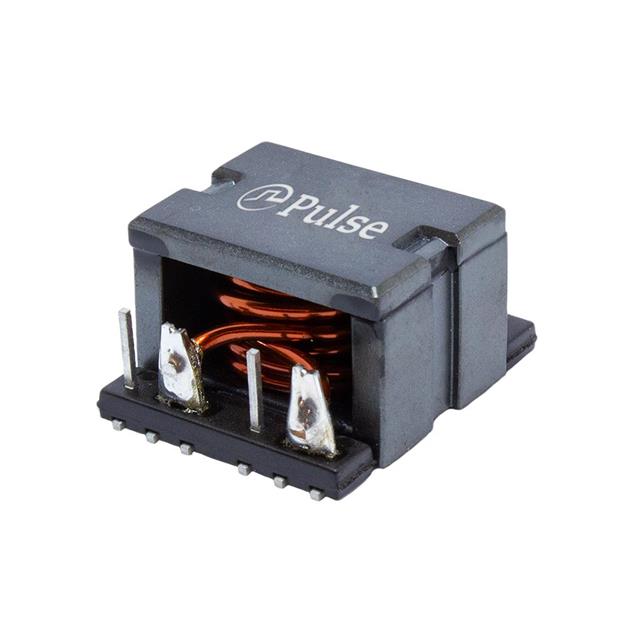

PM9407.204NLT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 17A 2LN SMD AEC-Q200. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PM9407.204NLT
- Description：CMC 17A 2LN SMD AEC-Q200
- Series：PM9407.xxxNLT
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：17A
- DC Resistance (DCR) (Max)：3.5mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.961" L x 0.850" W (24.40mm x 21.60mm)
- Height (Max)：0.583" (14.80mm)
- Package / Case：Horizontal, 11 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PM9407.204NLT
Common Mode Chokes Overview
The PM9407.204NLT is a surface-mount common mode filter manufactured by Pulse Electronics. It features an inductance of 130 µH and an impedance of 1.08 kΩ. The component supports a maximum DC current rating of 17 A with a maximum DC resistance of 3.5 mΩ. It operates within a temperature range of -40°C to 125°C and meets AEC-Q200 qualification standards. The physical dimensions are 24.40 mm in length and 21.60 mm in width, designed for PCB mounting.
Common Mode Chokes Feature Summary
- AEC-Q200 qualified for automotive reliability
- High current handling capability up to 17 A
- Surface mount construction for automated assembly
Common Mode Chokes Applications
- Automotive power line filtering
- Common mode noise suppression in vehicle electronics
- Power supply input stages
Common Mode Chokes Procurement Notes
Verify the specific datasheet version for the PM9407.204NLT to confirm exact impedance and inductance tolerances. Ensure the selected variant matches the required 17 A current rating and 130 µH inductance specifications for your circuit design. Cross-reference package dimensions to confirm compatibility with your PCB footprint.
Common Mode Chokes Selection Notes
Select this component when high current capacity and automotive-grade reliability are required for common mode noise reduction. The 17 A rating suits heavy-duty power applications. Verify that the 130 µH inductance provides sufficient attenuation for the target frequency range. Confirm the surface mount package fits the available board space.
Common Mode Chokes Part Context
This part belongs to the PM9407 series of common mode chokes from Pulse Electronics. The series offers various inductance values tailored for automotive power line applications. The PM9407.204NLT specifically targets high-current scenarios requiring robust EMI suppression in compact surface-mount packages.
Common Mode Chokes Replacement Considerations
Check for other PM9407 variants with different inductance values if the 130 µH specification does not match the design requirements. Ensure any substitute maintains the 17 A current rating and AEC-Q200 qualification for automotive use.
