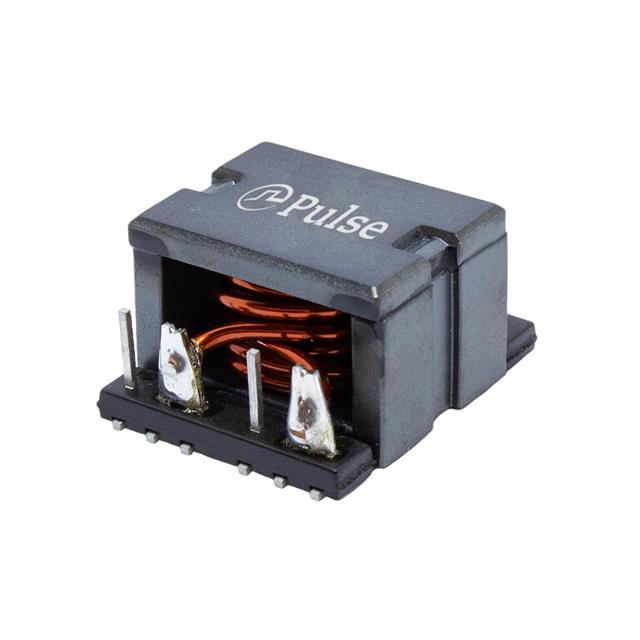

PM9407.304NLT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 14A 2LN SMD AEC-Q200. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PM9407.304NLT
- Description：CMC 14A 2LN SMD AEC-Q200
- Series：PM9407.xxxNLT
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：14A
- DC Resistance (DCR) (Max)：4.8mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.961" L x 0.850" W (24.40mm x 21.60mm)
- Height (Max)：0.630" (16.00mm)
- Package / Case：Horizontal, 11 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PM9407.304NLT
Common Mode Chokes Overview
The PM9407.304NLT is a surface-mount common mode filter manufactured by Pulse Electronics. It belongs to the CMSA product range and features an inductance of 182 µH with a maximum DC resistance of 4.8 mOhms. The component supports a DC current rating of 14 A and provides an impedance of 1.6 kOhm. Designed for automotive applications, it meets AEC-Q200 qualification standards. The device utilizes a two-line configuration suitable for PCB mounting, ensuring efficient power conversion and voltage regulation in demanding electronic environments.
Common Mode Chokes Feature Summary
- Provides effective common mode noise suppression through high impedance characteristics
- Supports high current handling capabilities for robust power circuit operation
- Qualified for automotive reliability standards under AEC-Q200 specifications
Common Mode Chokes Applications
- Automotive power supply circuits
- Battery management systems
- Voltage regulation modules
Common Mode Chokes Procurement Notes
Verify the specific part number PM9407.304NLT against official Pulse Electronics documentation to confirm electrical parameters and package dimensions. Ensure compatibility with target PCB footprint and thermal requirements. Confirm AEC-Q200 certification status if required for automotive integration. Cross-reference manufacturer datasheets for accurate impedance and current ratings prior to procurement.
Common Mode Chokes Selection Notes
Select this component for applications requiring high-current common mode filtering in automotive or industrial settings. The low DC resistance minimizes power loss, while the 14 A rating supports substantial load currents. Consider the 182 µH inductance value for appropriate noise attenuation frequencies. Verify that the surface-mount package fits within the available board space constraints.
Common Mode Chokes Part Context
This component is part of the PM9407.XXXNLT series from Pulse Electronics, designed specifically for common mode choke applications. The series offers various inductance values tailored for different filtering needs. As a surface-mount device, it facilitates automated assembly processes. The product line emphasizes reliability and performance in compact electronic designs.
Common Mode Chokes Replacement Considerations
Consult official Pulse Electronics substitution guides for compatible alternatives within the PM9407 series. Verify equivalent inductance, current rating, and impedance values before replacing. Ensure mechanical footprint compatibility with existing PCB layouts.
