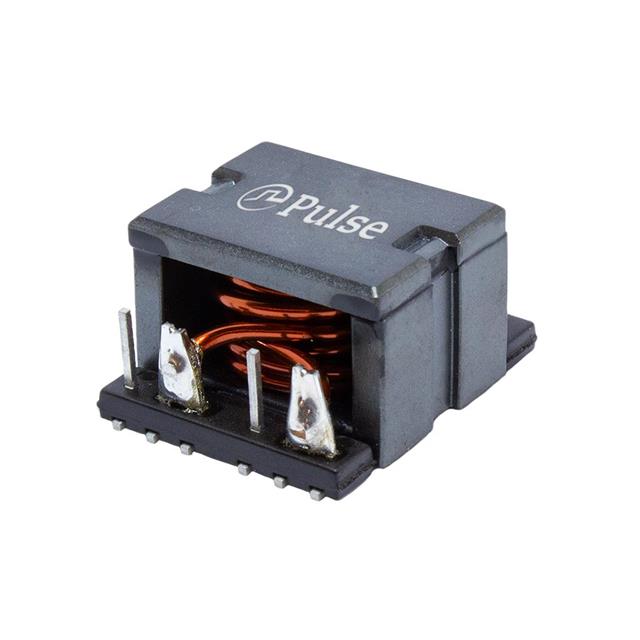

PM9407.404NLT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 12A 2LN SMD AEC-Q200. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PM9407.404NLT
- Description：CMC 12A 2LN SMD AEC-Q200
- Series：PM9407.xxxNLT
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：12A
- DC Resistance (DCR) (Max)：5.3mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.961" L x 0.850" W (24.40mm x 21.60mm)
- Height (Max)：0.665" (16.90mm)
- Package / Case：Horizontal, 11 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PM9407.404NLT
Common Mode Chokes Overview
The PM9407.404NLT is a common mode filter manufactured by Pulse Electronics, designed for surface-mount technology applications. It features an inductance of 232 µH and offers an impedance of 1.72 kOhm at the specified frequency. The component supports a DC current rating of 12 A with a maximum DC resistance of 13.2 mOhms. Its physical dimensions are 24.4 mm in length and 21.6 mm in width. This shielded device is qualified under the AEC-Q200 standard, ensuring reliability for automotive environments.
Common Mode Chokes Feature Summary
- AEC-Q200 qualified for automotive reliability standards
- Shielded construction to minimize electromagnetic interference
- High current handling capability suitable for power line filtering
Common Mode Chokes Applications
- Automotive electronic systems
- Power supply input filtering
- Data line noise suppression
Common Mode Chokes Procurement Notes
Verify the specific package dimensions and terminal configuration against the official datasheet before integration. Confirm that the 12 A current rating aligns with the thermal management design of the target PCB layout. Ensure the AEC-Q200 qualification meets the specific automotive grade requirements of the end application.
Common Mode Chokes Selection Notes
Select this component when high current capacity and robust noise attenuation are required in space-constrained automotive designs. The shielded design aids in meeting strict EMC regulations. Compare the 232 µH inductance value against circuit requirements to ensure effective common mode noise rejection without affecting signal integrity.
Common Mode Chokes Part Context
This part belongs to the PM9407.XXXNLT series from Pulse Electronics, which specializes in high-performance common mode chokes. The series is engineered for demanding automotive and industrial applications where reliability under high stress conditions is critical. It complements other components in power management and signal conditioning circuits.
Common Mode Chokes Replacement Considerations
Consult the manufacturer's official substitution guide for verified alternatives within the PM9407 series or equivalent AEC-Q200 qualified parts. Ensure any substitute matches the 232 µH inductance, 1.72 kOhm impedance, and 12 A current rating precisely.
