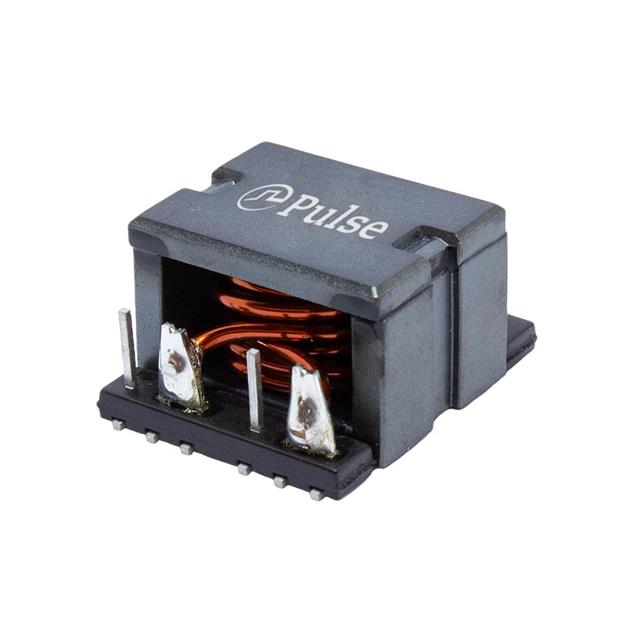

PM9407.504NLT

Common Mode Chokes Overview

The PM9407.504NLT is a common mode filter from Pulse Electronics, designed for surface mount installation. It features an inductance of 312 µH and an impedance of 2.35 kΩ at 1.42 MHz. The component supports a DC current rating of 10A with a maximum DC resistance (DCR) of 7.8 mΩ. It operates reliably within a temperature range of -40°C to +125°C and includes a voltage withstand capability of 1.5kV. This two-line filter is part of the PM9407.XXXNLT series.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression with high impedance characteristics
• Supports high current applications with low DC resistance for minimal power loss
• Engineered for reliable operation across extended industrial temperature ranges

Common Mode Chokes Applications

• High-current power line filtering
• Industrial equipment EMI suppression
• Automotive electronics noise reduction

Common Mode Chokes Procurement Notes

Verify the specific impedance value and current rating against your circuit requirements before ordering. Confirm that the surface mount package dimensions fit your PCB layout constraints. Ensure the operating temperature range meets your environmental specifications. Check for any specific qualification standards required by your industry sector.

Common Mode Chokes Selection Notes

Select this component when high current handling capacity is critical alongside significant common mode noise attenuation. The low DCR ensures efficiency in power delivery paths. Consider the physical size and mounting style compatibility with your assembly process. Evaluate if the 1.5kV withstand voltage aligns with your system's isolation needs.

Common Mode Chokes Part Context

This component belongs to the PM9407.XXXNLT series of common mode chokes manufactured by Pulse Electronics. These filters are engineered for robust performance in demanding electronic environments. The series offers various inductance values to suit different frequency and current requirements while maintaining consistent physical and electrical characteristics.

Common Mode Chokes Replacement Considerations

Consult official datasheets for direct substitutes within the PM9407 series or equivalent components from other manufacturers. Verify that any replacement matches the 312 µH inductance, 10A current rating, and 2.35 kΩ impedance specifications. Ensure thermal and mechanical compatibility before switching suppliers.
