Product Detailed Parameters
- Description：CMC 16MH 1.5A 2LN THROUGH HOLE
- Series：PMCE
- Mfr：Premier Magnetics
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.5A
- DC Resistance (DCR) (Max)：250mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：3750V (3.75kV)
- Operating Temperature：-40°C ~ 80°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.826" L x 0.750" W (21.00mm x 19.05mm)
- Height (Max)：1.063" (27.00mm)
- Package / Case：-
- Inductance @ Frequency：16 mH @ 1 kHz
- Impedance @ Frequency：-
Download product information
Overview

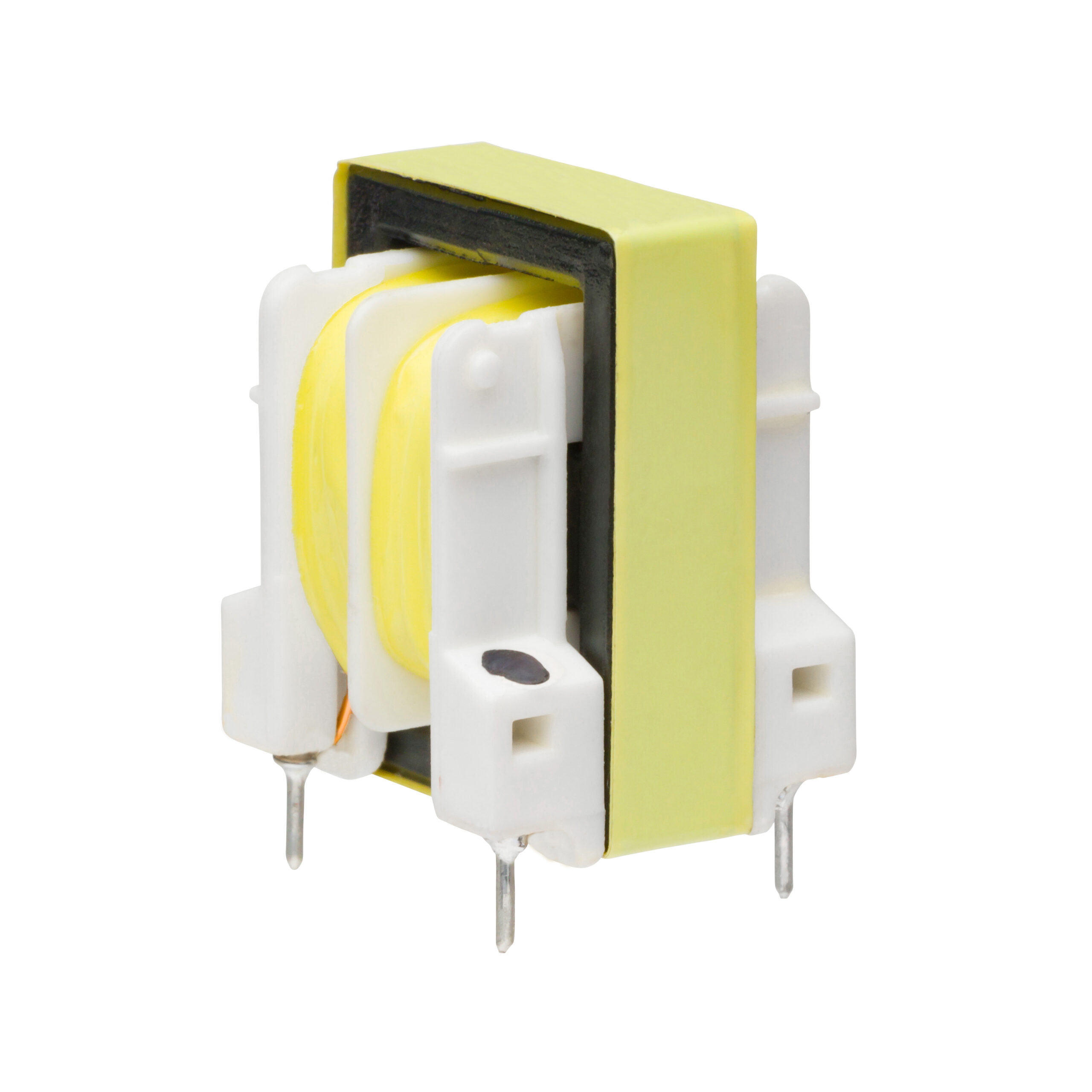

The PMCE-0160 is a two-line common mode choke manufactured by Premier Magnetics, designed for power line EMI/RFI filtering applications. It features an inductance of 16 mH measured at 1 kHz and supports a maximum current rating of 1.5 A. The component has a maximum DC resistance (DCR) of 250 mOhm and is rated for AC voltages up to 3750 V. It operates within a temperature range extending to 130°C and utilizes a through-hole mounting style with a maximum height of 27.00 mm.
Feature Summary
- Provides effective attenuation of electromagnetic interference and radio frequency interference on dual power lines.
- Engineered with high insulation voltage capability suitable for demanding power line environments.
- Constructed for reliable thermal performance under continuous operation at elevated temperatures.
Applications
- Single-phase power supply input filtering
- Industrial equipment EMI suppression
- Consumer electronics power line protection
Procurement Notes
Verify the specific datasheet version from Premier Magnetics to confirm mechanical dimensions and electrical tolerances. Ensure the selected component matches the required current rating and inductance specifications for your circuit design. Cross-reference part numbers carefully to avoid confusion with similar series components.
Selection Notes
Select this component when a 16 mH inductance at 1 kHz is required for common mode noise reduction. Confirm that the 1.5 A current rating meets the load requirements and that the 3750 V AC insulation rating satisfies safety standards. Verify through-hole compatibility with the target PCB layout.
Part Context
This component belongs to the PMCE-XXXX series of EMI/RFI common mode line filters produced by Premier Magnetics. The series offers various inductance values tailored for different power line filtering needs while maintaining consistent form factors and mounting styles for easy integration into electronic assemblies.
Replacement Considerations
Consult official manufacturer substitution guides for verified equivalents. Do not assume cross-compatibility with other brands without verifying electrical parameters and physical dimensions against the original specification sheet.
FAQ
What is the inductance value of the PMCE-0160?
The inductance is 16 mH when measured at a frequency of 1 kHz.
Is the PMCE-0160 suitable for high-voltage applications?
Yes, it has an AC voltage rating of 3750 V, making it suitable for high-insulation requirements.
