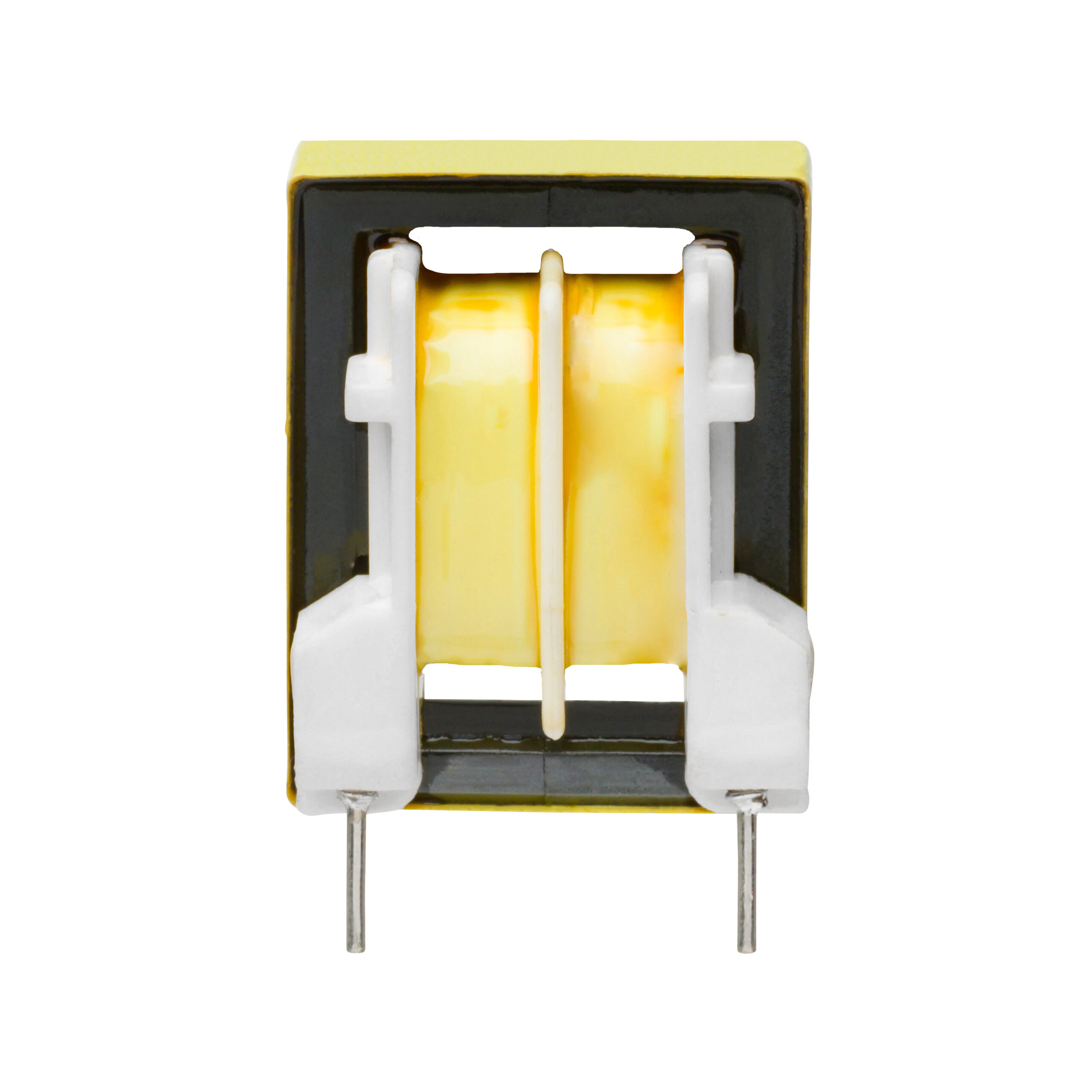

PMCE-0330

$7.04

Description：CMC 1A 2LN TH
Series：PMCE
Mfr：Premier Magnetics
Package：Bulk

SKU:e7781fc0f711 Category: Common Mode Chokes Brand: Premier Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1A 2LN TH
Series：PMCE
Mfr：Premier Magnetics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：550mOhm
Voltage Rating - DC：-
Voltage Rating - AC：3750V (3.75kV)
Operating Temperature：-40°C ~ 80°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.826" L x 0.750" W (21.00mm x 19.05mm)
Height (Max)：1.063" (27.00mm)
Package / Case：-
Inductance @ Frequency：33 mH @ 1 kHz
Impedance @ Frequency：-

Download product information

PMCE-0330

Overview

The PMCE-0330 is a common mode choke from Premier Magnetics designed for EMI and RFI suppression in power lines. It features a through-hole mounting style with two lines. The component provides an inductance of 33 mH at 1 kHz and supports a current rating of 1 A. Its maximum DC resistance is 550 mOhm. The device operates within a temperature range of -40°C to +80°C and has a maximum height of 27.00 mm.

Feature Summary

Provides EMI and RFI common mode filtering for power line applications
Utilizes through-hole mounting for secure board integration
Designed for operation across a wide industrial temperature range

Applications

EMI/RFI common mode line filters
Power supply input stages
General electronic equipment noise suppression

Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and mechanical dimensions. Ensure the operating environment stays within the specified -40°C to +80°C range. Confirm that the 1 A current rating meets the circuit requirements. Check for any specific mounting orientation constraints during assembly.

Selection Notes

Select this component when a 33 mH inductance value is required for common mode noise reduction. The 1 A current capacity suits low-power applications. Verify that the through-hole package fits the PCB layout. Consider the 550 mOhm DCR impact on voltage drop if efficiency is critical.

Part Context

This part belongs to the PMCE series of EMI/RFI common mode line filters manufactured by Premier Magnetics. The series offers various inductance values for different filtering needs. These components are engineered for reliable performance in standard power line environments.
