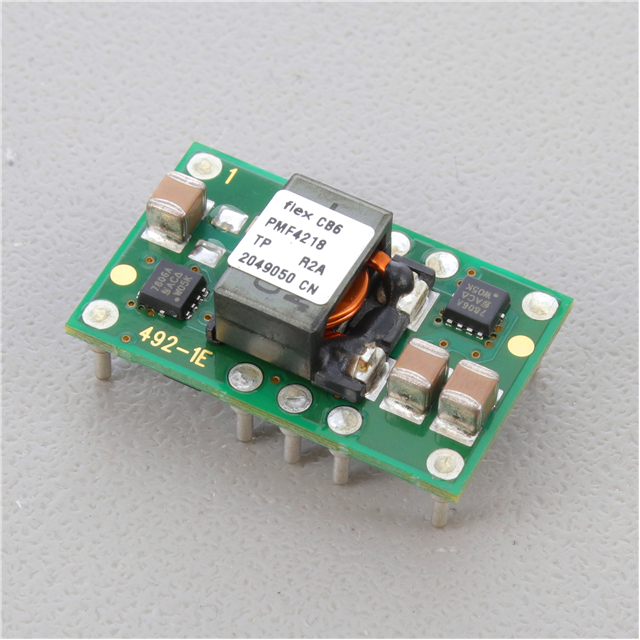

PMF4218TP is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 0.8-2.5V 25W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for PMF4218TP
- Description：DC DC CONVERTER 0.8-2.5V 25W
- Series：PMF 4000 (25W)
- Mfr：Flex Power Modules
- Package：Tray
- Type：Non-Isolated PoL Module
- Number of Outputs：1
- Voltage - Input (Min)：2.95V
- Voltage - Input (Max)：3.65V
- Voltage - Output 1：0.8 ~ 2.5V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：10A
- Power (Watts)：25 W
- Voltage - Isolation：-
- Applications：ITE (Commercial)
- Features：Adjustable Output, Remote On/Off, Remote Sense
- Operating Temperature：-40°C ~ 85°C (With Derating)
- Efficiency：94.10%
- Mounting Type：Through Hole
- Package / Case：10-DIP Module
- Size / Dimension：0.99" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm)
- Supplier Device Package：-
- Control Features：Enable, Active Low
- Approval Agency：CB, CSA, IEC, TUV, UL
- Standard Number：62368-1
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for PMF4218TP
