PMR210ME6100M100R30

Overview

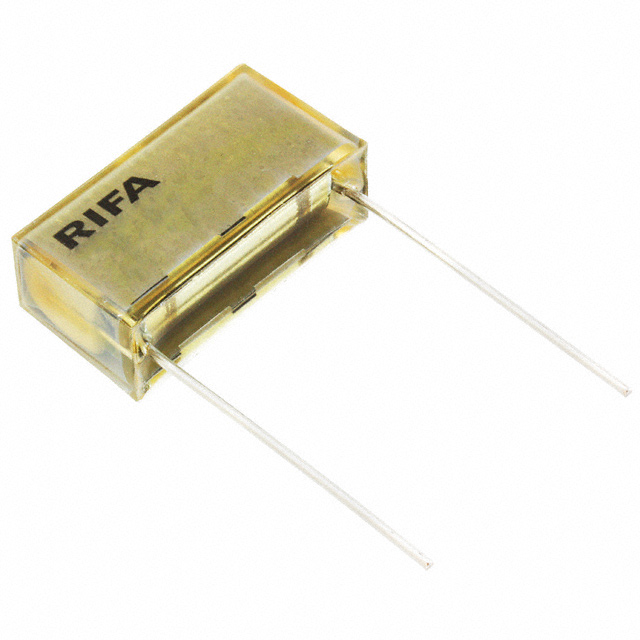

The KEMET PMR210ME6100M100R30 is a first-order RC EMI filter designed for through-hole mounting. It integrates a 0.1 µF metallized paper capacitor with a 100 Ω resistor in a radial configuration. The component operates at a rated AC voltage of 250 V and a DC voltage of 630 V, featuring a ±20% capacitance tolerance. It supports a wide operating temperature range from -40°C to 85°C and includes X1 safety suppression classification. Standard certifications include UL, CSA, VDE, and RoHS compliance.

Feature Summary

• Integrates a 0.1 µF capacitor and 100 Ω resistor into a single radial package for compact circuit design
• Utilizes metallized paper dielectric technology for reliable high-voltage performance
• Provides X1 class safety suppression for effective electromagnetic interference mitigation

Applications

• Electromagnetic interference (EMI) suppression in power supply circuits
• Low-pass filtering for general-purpose electronic equipment
• Noise reduction in AC mains input stages

Procurement Notes

Verify the specific suffix R30 against official datasheets to confirm lead spacing and packaging details. Ensure the metallized paper construction aligns with thermal requirements. Cross-reference UL and VDE certification numbers for regulatory compliance before integration.

Selection Notes

Select this component when a combined RC network is required for first-order filtering. The 100 Ω resistance value determines the cutoff frequency alongside the 0.1 µF capacitance. Verify that the 250 VAC rating meets the system's line voltage specifications and that the radial form factor fits the PCB layout constraints.

Part Context

This part belongs to the PMR210 series of RC EMI filters manufactured by KEMET. The series utilizes metallized paper film technology, distinguishing it from polyester or polypropylene alternatives. It is engineered specifically for safety-critical applications requiring certified suppression components.

Replacement Considerations

Direct substitutes within the PMR210 series may exist with different resistance values or capacitance ratings. Verify electrical parameters and physical dimensions before substitution. No other specific cross-references are confirmed in public documentation.
