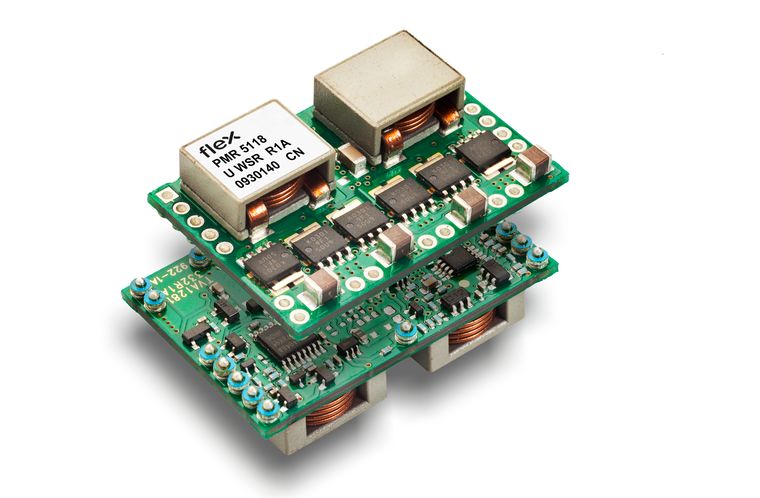

PMR5118UWSR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 0.7-3.6V 180W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for PMR5118UWSR
- Description：DC DC CONVERTER 0.7-3.6V 180W
- Series：PMR 5000 (180W)
- Mfr：Flex Power Modules
- Package：Tray
- Type：Non-Isolated PoL Module
- Number of Outputs：1
- Voltage - Input (Min)：4.5V
- Voltage - Input (Max)：14V
- Voltage - Output 1：0.7 ~ 3.6V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：50A
- Power (Watts)：180 W
- Voltage - Isolation：-
- Applications：ITE (Commercial)
- Features：Adjustable Output, Remote On/Off, Remote Sense
- Operating Temperature：-40°C ~ 85°C (With Derating)
- Efficiency：96.30%
- Mounting Type：Surface Mount
- Package / Case：22-SMD Module
- Size / Dimension：1.52" L x 1.02" W x 0.39" H (38.6mm x 25.9mm x 9.8mm)
- Supplier Device Package：-
- Control Features：Enable, Active Low
- Approval Agency：CB, CSA, IEC, TUV, UL
- Standard Number：62368-1
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for PMR5118UWSR
