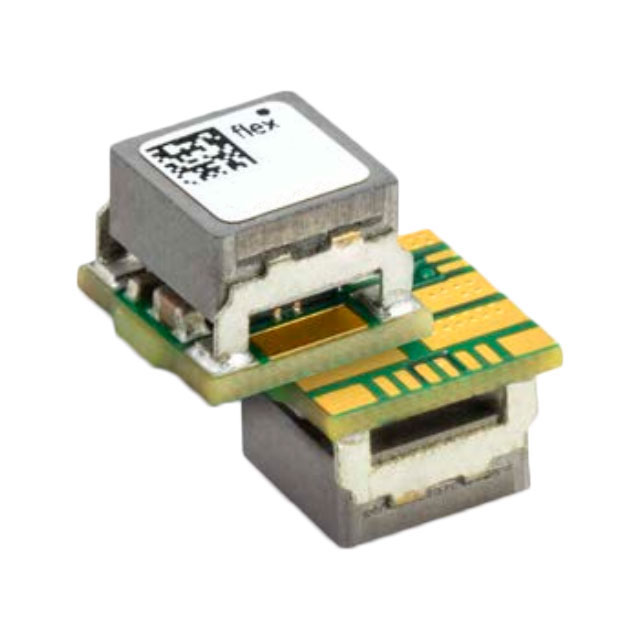

PMU8218 D

PMU8218 D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 0.6-5.5V 22W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PMU8218 D

• Description：DC DC CONVERTER 0.6-5.5V 22W
• Series：PMU8000
• Mfr：Flex Power Modules
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：17V
• Voltage - Output 1：0.6 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：4A
• Power (Watts)：22 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 125°C
• Efficiency：88.50%
• Mounting Type：Surface Mount
• Package / Case：24-SMD Module
• Size / Dimension：0.30" L x 0.30" W x 0.21" H (7.5mm x 7.5mm x 5.4mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PMU8218 D
