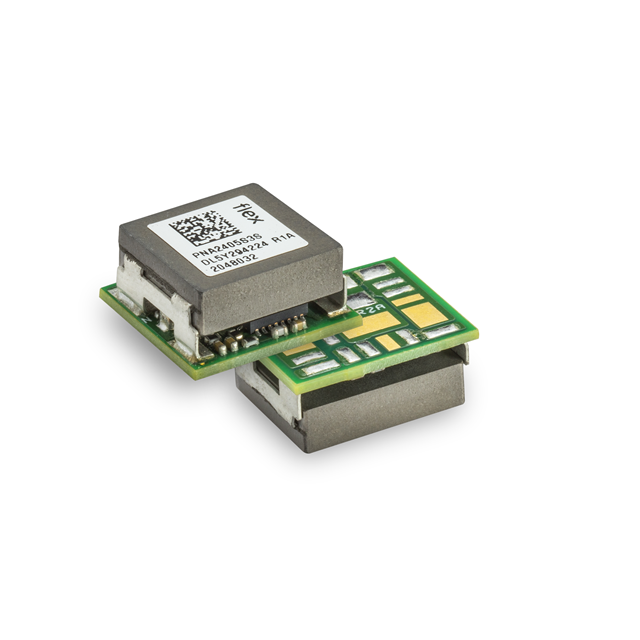

PNA2405S3S

PNA2405S3S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is 9-36VIN; 0.9-5.5VOUT; 6A; NON-IS. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PNA2405S3S

• Description：9-36VIN; 0.9-5.5VOUT; 6A; NON-IS
• Series：PNA (33W)
• Mfr：Flex Power Modules
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：0.9 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6A
• Power (Watts)：33 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense, Standby Output
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：95.70%
• Mounting Type：Surface Mount
• Package / Case：17-SMD Module
• Size / Dimension：0.51" L x 0.49" W x 0.25" H (13.0mm x 12.4mm x 6.3mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：cURus, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PNA2405S3S
