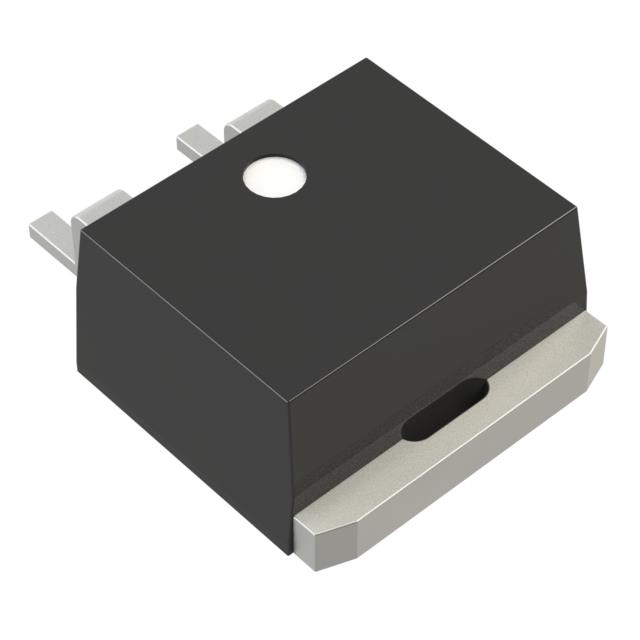

PNU650100EJ-QJ is listed in the Single Diodes range at ChipApex. The manufacturer field lists Nexperia USA Inc.. Its product description is DIODE STD 650V 10A D2PAK R2P. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for PNU650100EJ-QJ
- Description：DIODE STD 650V 10A D2PAK R2P
- Series：-
- Mfr：Nexperia USA Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：650 V
- Current - Average Rectified (Io)：10A
- Voltage - Forward (Vf) (Max) @ If：1.55 V @ 10 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：60 ns
- Current - Reverse Leakage @ Vr：5 µA @ 650 V
- Capacitance @ Vr, F：7pF @ 400V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), Variant
- Supplier Device Package：D2PAK R2P
- Operating Temperature - Junction：175°C
- Grade：Automotive
- Qualification：AEC-Q101
Single Diodes datasheet and documents for PNU650100EJ-QJ
Single Diodes Overview
The Nexperia PNU650100EJ-QJ is a high-power density ultrafast recovery rectifier utilizing planar technology, housed in a D2PAK Real-2-Pin (SOT8018) package. It supports a repetitive peak reverse voltage of 650 V and an average forward current of 10 A at a case temperature up to 142 °C. The device features a typical switching time of 27 ns and low inductance construction. It operates within a junction temperature range of -55 °C to 175 °C and includes Pt-doped lifetime control for optimized performance.
Single Diodes Feature Summary
- Qualified according to AEC-Q101 standards for automotive applications
- Utilizes Pt-doped lifetime control for enhanced reliability
- Features low inductance design with planar die construction
Single Diodes Applications
- On Board Charger
- DC/DC converter
- AC/DC converter
- Battery heating/cooling
- Inverter
Single Diodes Procurement Notes
Verify the specific ordering suffix against official Nexperia documentation to confirm packaging details and availability status. Confirm that the component meets all required automotive qualification standards before integration into final designs. Ensure thermal management solutions align with the specified junction-to-case thermal resistance limits provided in the datasheet.
Single Diodes Selection Notes
Select this component for designs requiring high power density and fast switching characteristics in automotive environments. Evaluate thermal constraints carefully, as the average forward current rating depends on maintaining the case temperature below 142 °C. Consider the low inductance benefits for high-frequency switching applications where minimizing parasitic effects is critical for system efficiency.
Single Diodes Part Context
This part belongs to Nexperia's portfolio of ultrafast recovery rectifiers designed for high-efficiency power conversion. The D2PAK Real-2-Pin package offers a compact footprint suitable for surface-mount assembly. The product is specifically engineered to meet the rigorous demands of modern automotive electronics, providing robust performance under varying thermal conditions.
Single Diodes Replacement Considerations
Consult official Nexperia substitution guides for verified alternatives. Do not assume compatibility based solely on electrical parameters; verify package dimensions and pin configurations.
Single Diodes FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175 °C.
Is this component qualified for automotive use?
Yes, the PNU650100EJ-Q is qualified according to the AEC-Q101 standard and is recommended for automotive applications.
Explore related parts through Rectifiers, Diodes, Discrete Semiconductor Products, all product categories.
