PPF-165A5SNB-B200

Antennas RF Overview

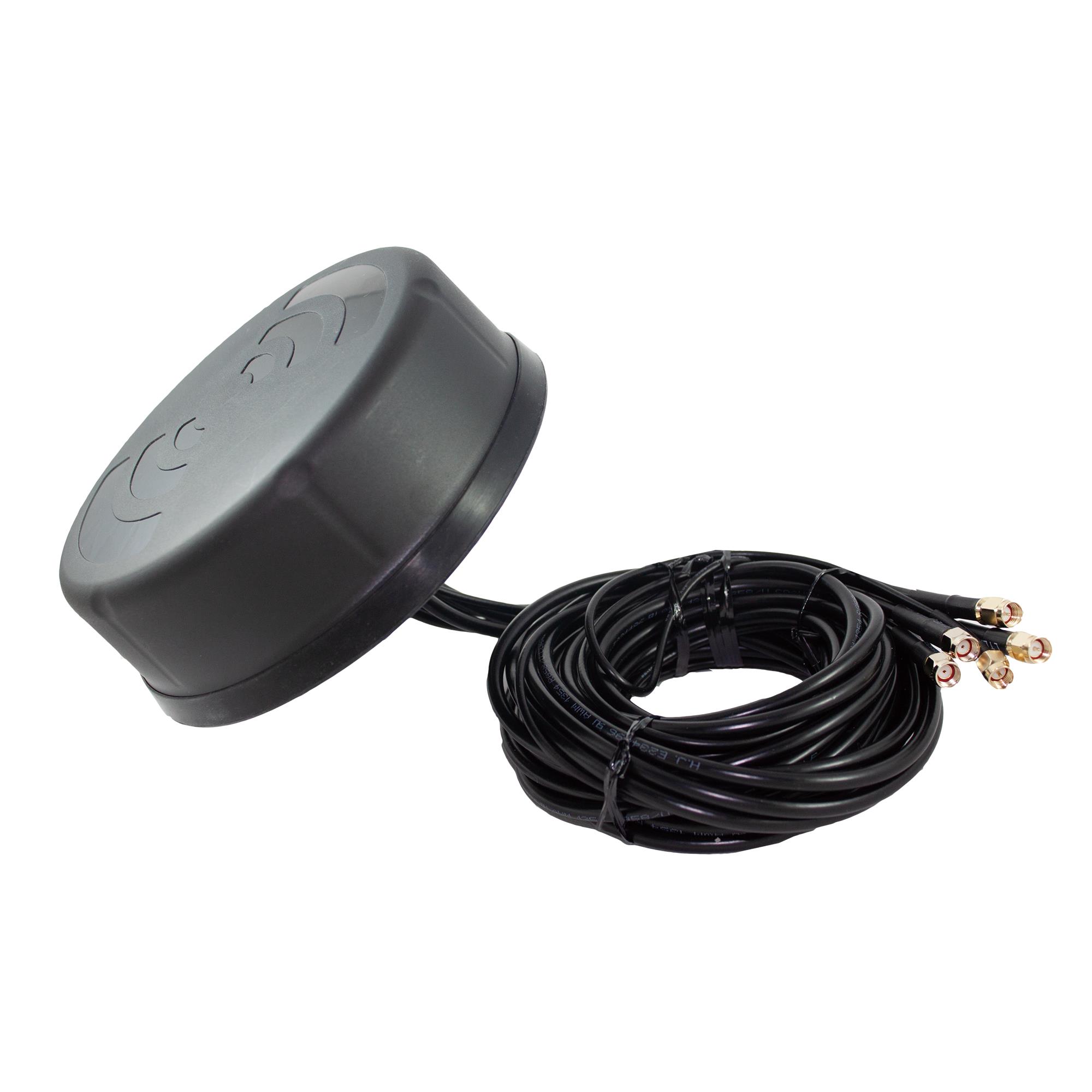

The Joymax Electronics PPF-165A5SNB-B200 is a MIMO 5x5 combination antenna designed for multi-standard wireless applications. It integrates five distinct functional units into a single compact assembly, supporting 5G New Radio FR1, LTE, Cellular IoT (LTE-M, NB-IoT), WiFi 7/6E, and GNSS signals. The device operates across multiple frequency bands including 657.5MHz, 761MHz, 892MHz, 1.575GHz, 1.955GHz, 2.45GHz, 3.75GHz, 4.7GHz, 5.5GHz, and 6.525GHz. It utilizes an SMA connector interface to facilitate integration into high-density communication systems requiring simultaneous multi-band transmission and reception capabilities.

Antennas RF Feature Summary

• Integrates five independent antenna functions into a single MIMO 5x5 unit
• Supports simultaneous operation of 5G NR FR1, LTE, Cellular IoT, WiFi, and GNSS
• Covers diverse frequency ranges from sub-1GHz to 6.5GHz bands
• Utilizes SMA connector interface for standardized system integration

Antennas RF Applications

• 5G New Radio FR1 base station deployments
• Multi-standard cellular IoT gateway installations
• WiFi 6E/7 access point hardware integration
• GNSS positioning module assemblies
• CBRS and C-Band communication equipment

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical drawings prior to procurement to ensure compatibility with enclosure constraints. Confirm that the SMA connector orientation and mounting hole patterns match the target design requirements. Check for any recent updates to the frequency band specifications or regulatory compliance certifications relevant to the deployment region. Ensure that the supply chain source provides authentic Joymax Electronics components to maintain signal integrity standards.

Antennas RF Selection Notes

Select this component when a single physical solution is required to replace multiple discrete antennas for 5G, LTE, WiFi, and GNSS applications. It is suitable for designs prioritizing space efficiency and reduced assembly complexity in MIMO configurations. Consider the integrated nature of the unit if the application demands synchronized multi-band performance without separate housing structures. Evaluate the SMA interface requirement against existing board layouts before finalizing the selection.

Antennas RF Part Context

This model belongs to Joymax Electronics' portfolio of multi-band RF antennas designed for modern wireless infrastructure. It addresses the trend toward consolidating multiple wireless technologies into unified hardware platforms. The product supports the evolution of cellular networks by accommodating both legacy LTE and emerging 5G NR standards alongside local area networking and satellite navigation requirements within a single form factor.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact mechanical dimensions and electrical parameters against potential alternatives to ensure functional equivalence in multi-band MIMO applications.
