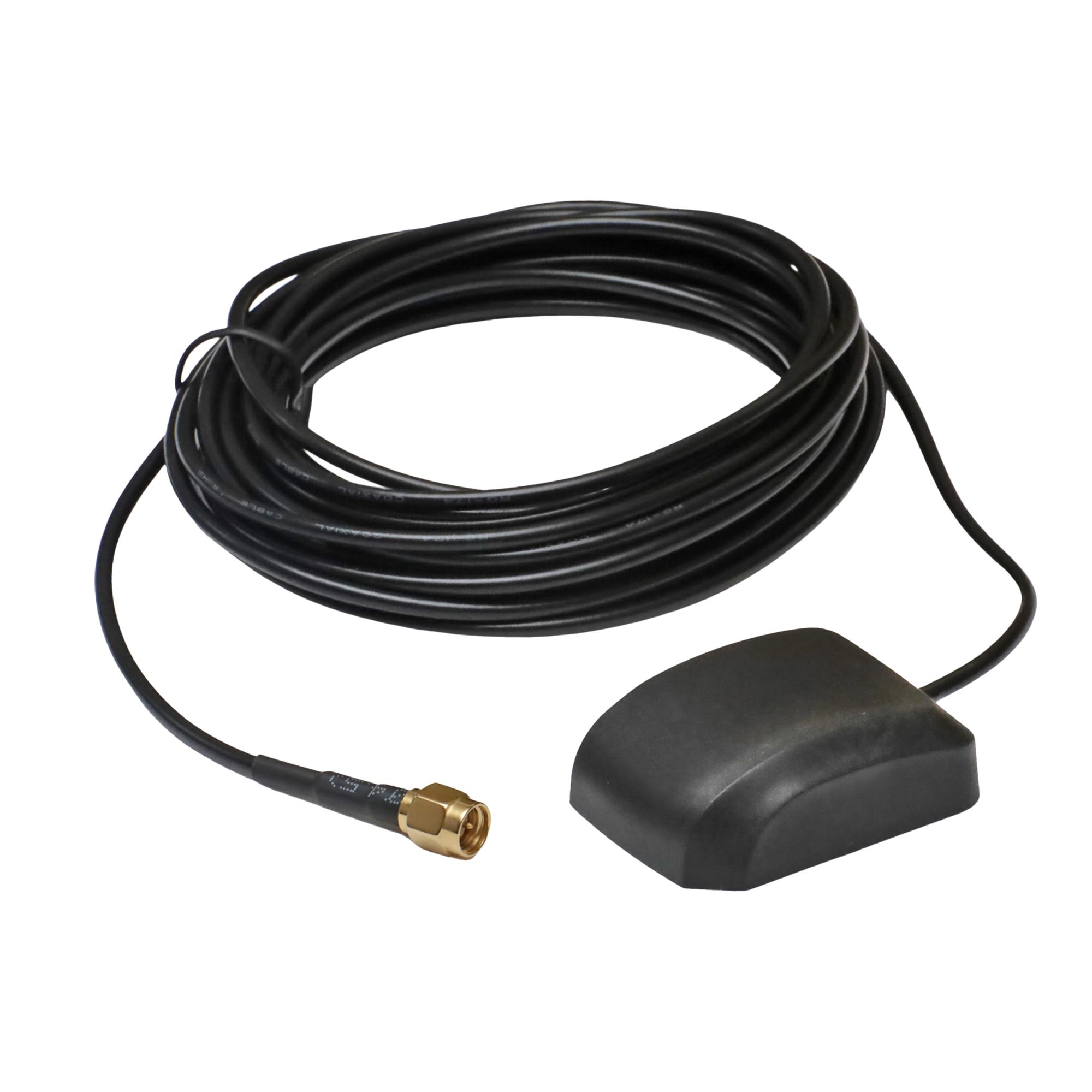

PPF-GP07SAXB-P300 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Joymax Electronics. Its product description is ANT GNSS ACTIVE SMA 3M CABLE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PPF-GP07SAXB-P300
- Description：ANT GNSS ACTIVE SMA 3M CABLE
- Series：GP07
- Mfr：Joymax Electronics
- Package：Bag
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
- Frequency Range：1.559GHz ~ 1.563GHz, 1.573GHz ~ 1.577GHz, 1.597GHz ~ 1.607GHz
- Antenna Type：Module
- Number of Bands：3
- VSWR：1.8, 2.0, 1.7
- Return Loss：-10.9dB, -9.5dB, -11.7dB
- Gain：29.6dBi, 29.3dBi, 29.2dBi
- Features：Cable - 3m, LNA, Filter
- Termination：SMA Male
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：0.646" (16.40mm)
- Applications：BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS
- Power - Max：-
Antennas RF datasheet and documents for PPF-GP07SAXB-P300
Antennas RF Overview
The Joymax Electronics PPF-GP07SAXB-P300 is an active GNSS puck antenna engineered for multi-band satellite navigation reception. It operates within the 1559–1608 MHz frequency range, supporting Global Navigation Satellite System applications. The unit features a magnetic mount configuration for flexible installation on vehicle surfaces or metallic structures. As an active patch design, it integrates low-noise amplification to enhance signal sensitivity and tracking performance in challenging environments.
Antennas RF Feature Summary
- Active patch antenna architecture for enhanced signal acquisition
- Magnetic mounting base for rapid, tool-free installation
- Optimized for multi-band GNSS frequency reception
Antennas RF Applications
- Vehicle tracking and telematics systems
- Fleet management navigation units
- Mobile GIS data collection devices
Antennas RF Procurement Notes
Verify the specific suffix P300 against the manufacturer's official datasheet to confirm cable length and connector type specifications. Ensure compatibility with the host receiver's RF interface requirements before procurement. Cross-reference the DigiKey part number 5448-PPF-GP07SAXB-P300-ND for accurate sourcing channels and availability status.
Antennas RF Selection Notes
Select this model when a non-permanent, easily repositionable GNSS solution is required for mobile platforms. The magnetic puck form factor offers a balance between durability and installation flexibility compared to panel-mounted alternatives. Evaluate the operating frequency range against local satellite constellation coverage to ensure optimal positioning accuracy.
Antennas RF Part Context
This component belongs to Joymax Electronics' external GNSS antenna portfolio, which includes various active dome and puck styles. The PPF series typically targets automotive and industrial mobile applications requiring robust satellite signal reception. It complements other Joymax products like the PPX-095ANF4W and PPF-6030SA4B by providing specialized mounting options for different deployment scenarios.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Users should consult Joymax Electronics directly for equivalent models or updated product line replacements.
