PPTC021LGBN-RC

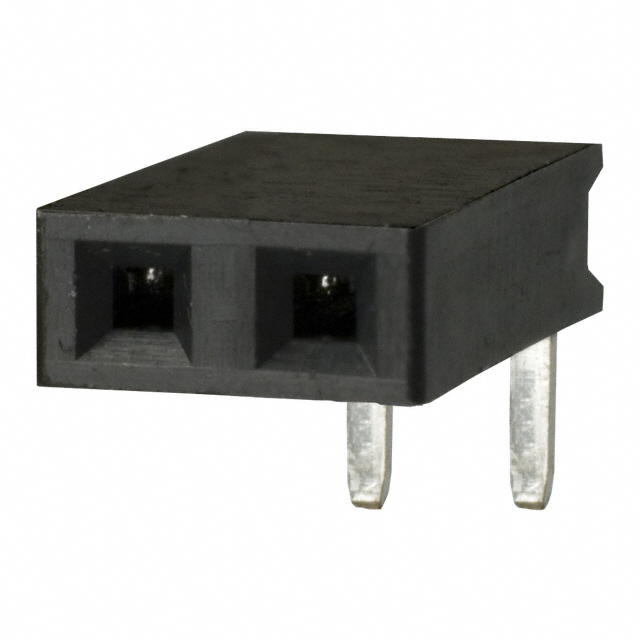

PPTC021LGBN-RC is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Sullins Connector Solutions. Its product description is CONN HDR 2POS 0.1 TIN PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for PPTC021LGBN-RC

• Description：CONN HDR 2POS 0.1 TIN PCB R/A
• Series：-
• Mfr：Sullins Connector Solutions
• Package：Tray
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：2
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.100" (2.54mm)
• Contact Length - Post：0.124" (3.15mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：3A
• Voltage Rating：250V
