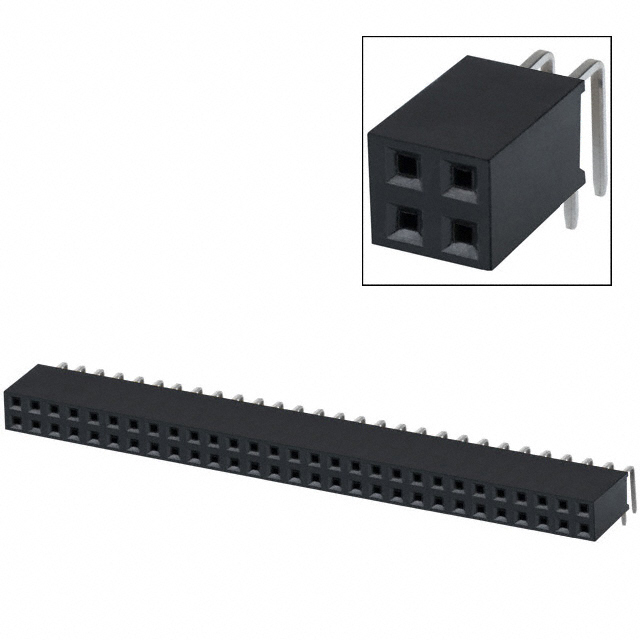

Headers, Receptacles, Female Sockets PPTC292LJBN product image

PPTC292LJBN

$1.68

Description：CONN HDR 58POS 0.1 TIN PCB R/A
Series：-
Mfr：Sullins Connector Solutions
Package：Bulk

SKU:8e727e067538 Category: Headers, Receptacles, Female Sockets Brand: Sullins Connector Solutions

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PPTC292LJBN is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Sullins Connector Solutions. Its product description is CONN HDR 58POS 0.1 TIN PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for PPTC292LJBN

Description：CONN HDR 58POS 0.1 TIN PCB R/A
Series：-
Mfr：Sullins Connector Solutions
Package：Bulk
Connector Type：Header
Contact Type：Female Socket
Style：Board to Board
Number of Positions：58
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.200" (5.08mm)
Contact Length - Post：0.124" (3.15mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：250V

Headers, Receptacles, Female Sockets datasheet and documents for PPTC292LJBN

PPTC292LJBN
