PPTHP76EMC

Overview

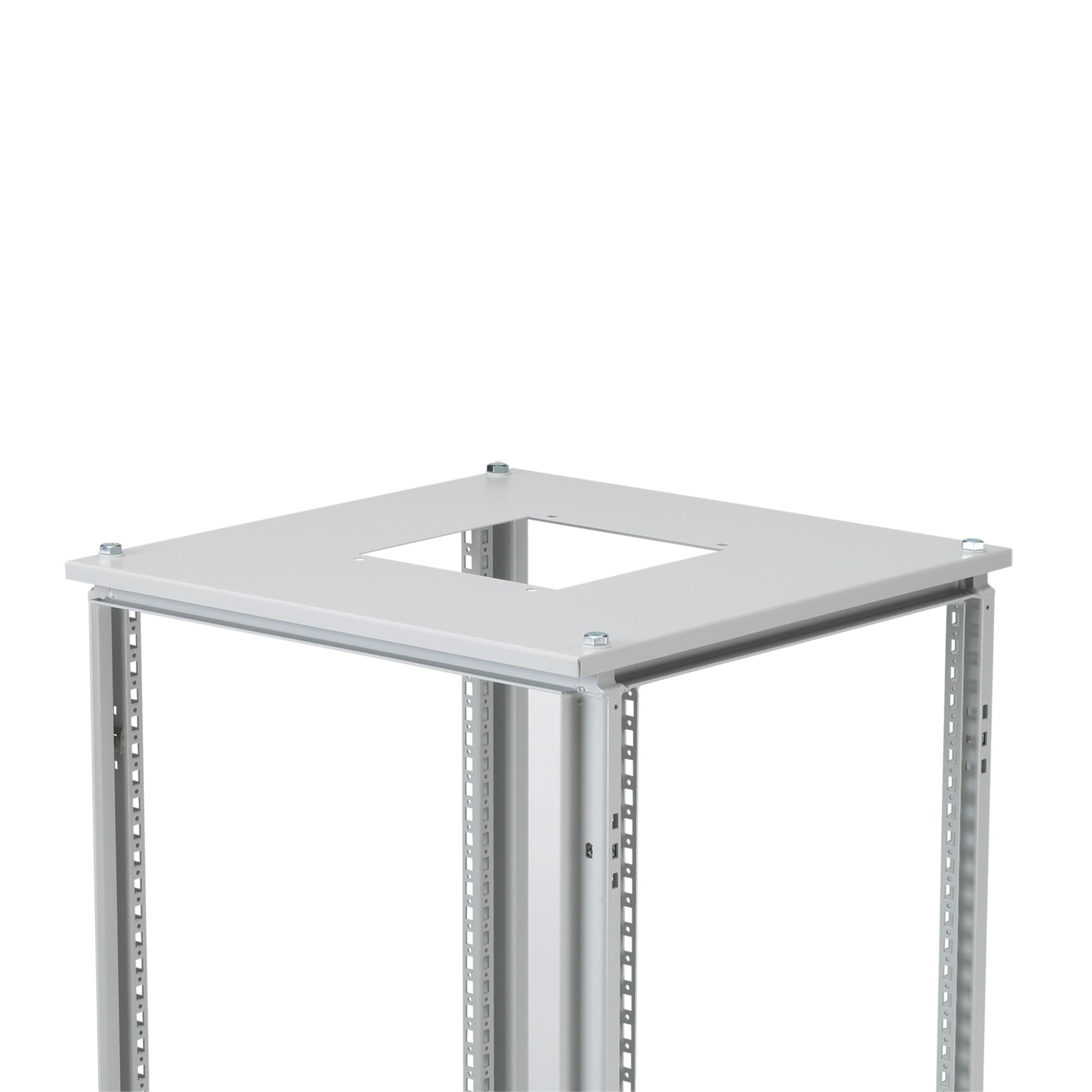

The nVent Hoffman PPTHP76EMC is a PROLINE series top panel designed for modular enclosure systems. It features a specific cutout to accommodate high-performance Pagoda exhaust vents, facilitating thermal management in electrical installations. The unit is constructed from painted material and includes gasketing and ground studs to ensure electromagnetic compatibility (EMC) performance. It is engineered to fit nominal frame dimensions of 700mm width by 600mm depth, providing a secure mounting solution for sensitive equipment requiring interference reduction.

Feature Summary

• Designed with a dedicated cutout to accept high-performance Pagoda exhaust vents for effective heat dissipation
• Includes integrated gasketing and ground studs to support electromagnetic interference reduction in sensitive electrical environments
• Constructed from painted material suitable for standard PROLINE frame integration

Applications

• Electrical enclosures requiring EMC shielding and thermal management
• Modular enclosure systems utilizing 700x600mm frames
• Installations necessitating high-performance pagoda vent integration

Procurement Notes

Verify that the target enclosure frame matches the required 700mm width and 600mm depth specifications before procurement. Confirm that the installation environment requires EMC-compliant top panels with integrated grounding provisions. Ensure compatibility with the specific high-performance Pagoda vent model intended for use, as the cutout geometry is specialized. Check current availability status as lead times may vary for this specific configuration.

Selection Notes

Select this component when an enclosure requires both structural top coverage and active thermal ventilation via a pagoda vent. It is appropriate for applications where electromagnetic interference mitigation is critical. Choose this part over standard tops if the design mandates integrated grounding studs and gasketed seals for EMC compliance. Ensure the base frame supports single bay mounting configurations compatible with PROLINE series standards.

Part Context

This component belongs to the nVent Hoffman PROLINE series, which offers modular solutions for industrial electrical enclosures. The PROLINE system allows for customizable configurations using standardized frames and accessories. This specific top panel enhances the system's capability by combining structural protection with specialized ventilation and EMC features, supporting robust deployment in demanding industrial settings.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific configuration.
