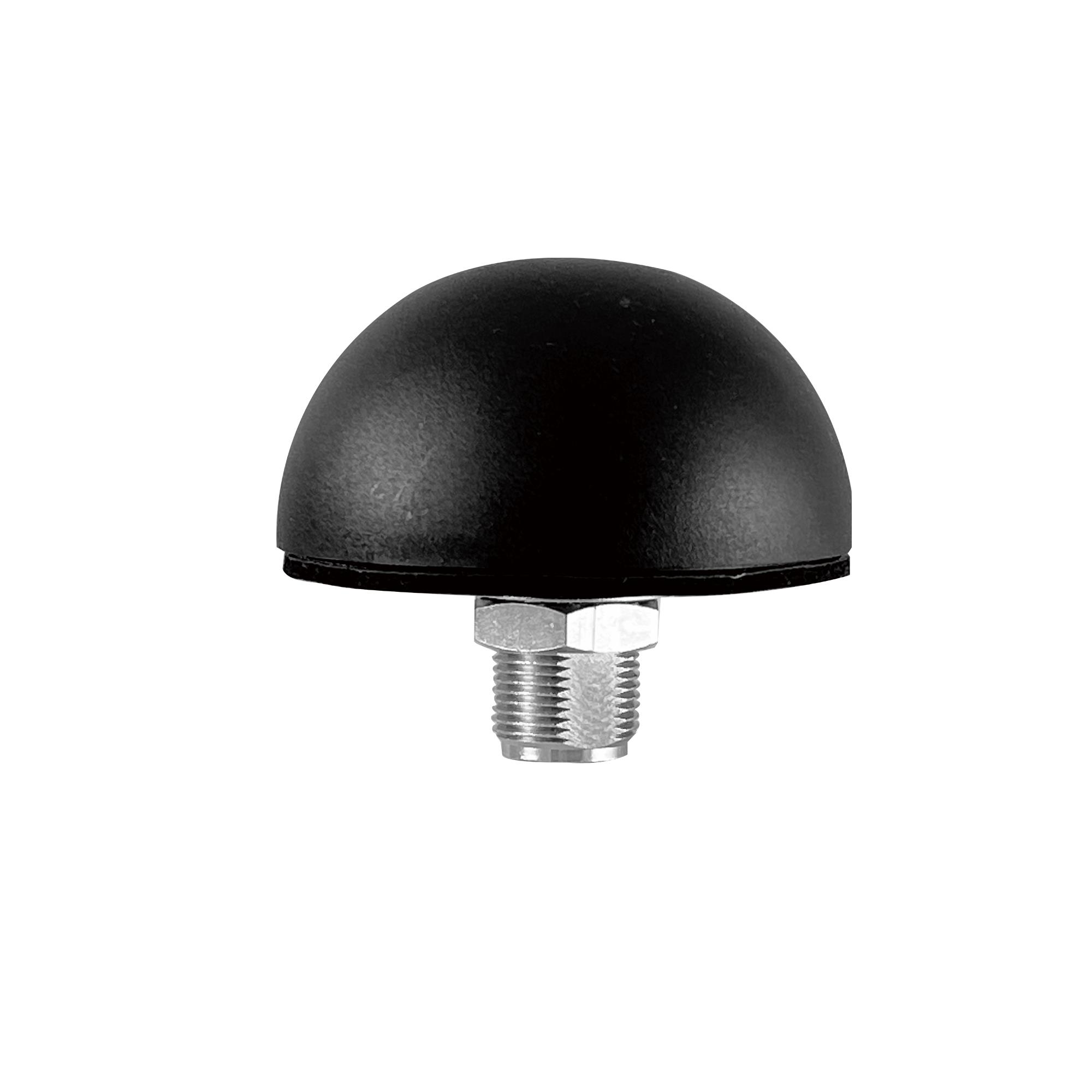

PPX-6030NFXB is listed in the Antennas RF range at ChipApex. The manufacturer field lists Joymax Electronics. Its product description is ANT GNSS ACTIVE DOME N JACK. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PPX-6030NFXB
- Description：ANT GNSS ACTIVE DOME N JACK
- Series：6030
- Mfr：Joymax Electronics
- Package：Box
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
- Frequency Range：1.559GHz ~ 1.563GHz, 1.573GHz ~ 1.577GHz, 1.597GHz ~ 1.607GHz
- Antenna Type：Dome
- Number of Bands：3
- VSWR：1.2, 2, 1.9
- Return Loss：-20.8dB, -9.5dB, -10.2dB
- Gain：28.2dBi, 28.8dBi, 26.8dBi
- Features：LNA, Filter
- Termination：N Type Female
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：1.181" (30.00mm)
- Applications：BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS
- Power - Max：-
Antennas RF datasheet and documents for PPX-6030NFXB
Antennas RF Overview
The Joymax Electronics PPX-6030NFXB is an active GNSS L1 dome antenna designed for panel mounting. It operates within the 1575 MHz to 1610 MHz frequency band, supporting Global Navigation Satellite Systems including GPS, GLONASS, Galileo, BeiDou, and QZSS. The unit features an N-type female connector for secure interface connections. This component provides reliable signal acquisition for navigation applications requiring robust L1 band performance.
Antennas RF Feature Summary
- Active dome design optimized for broad sky visibility
- Supports multiple global satellite navigation constellations
- Panel-mount configuration with integrated N-type connector
Antennas RF Applications
- Automotive navigation systems
- Maritime vessel tracking
- Aviation positioning equipment
- Geospatial surveying instruments
Antennas RF Procurement Notes
Verify that the specific part number matches the required N-type female connector variant. Confirm operational frequency alignment with target GNSS constellations. Ensure mechanical compatibility with intended panel thickness and mounting constraints prior to final procurement decisions.
Antennas RF Selection Notes
Select this model when a low-profile dome antenna is required for permanent installation. The active element supports standard L1 frequencies across major global systems. Consider the N-type connector requirement for cable integration versus other interface types available in the product line.
Antennas RF Part Context
This component belongs to Joymax Electronics' portfolio of RF antennas and IoT connectivity solutions. The manufacturer focuses on simplifying complex RF engineering through standardized antenna designs. The PPX series represents their active GNSS offerings for professional navigation applications.
Antennas RF Replacement Considerations
The PPX-6030NF4B serves as a confirmed substitute within the same product family. Both models share identical active GNSS L1 specifications and dome form factors. Verify connector orientation and mounting hardware compatibility during cross-reference evaluation.
