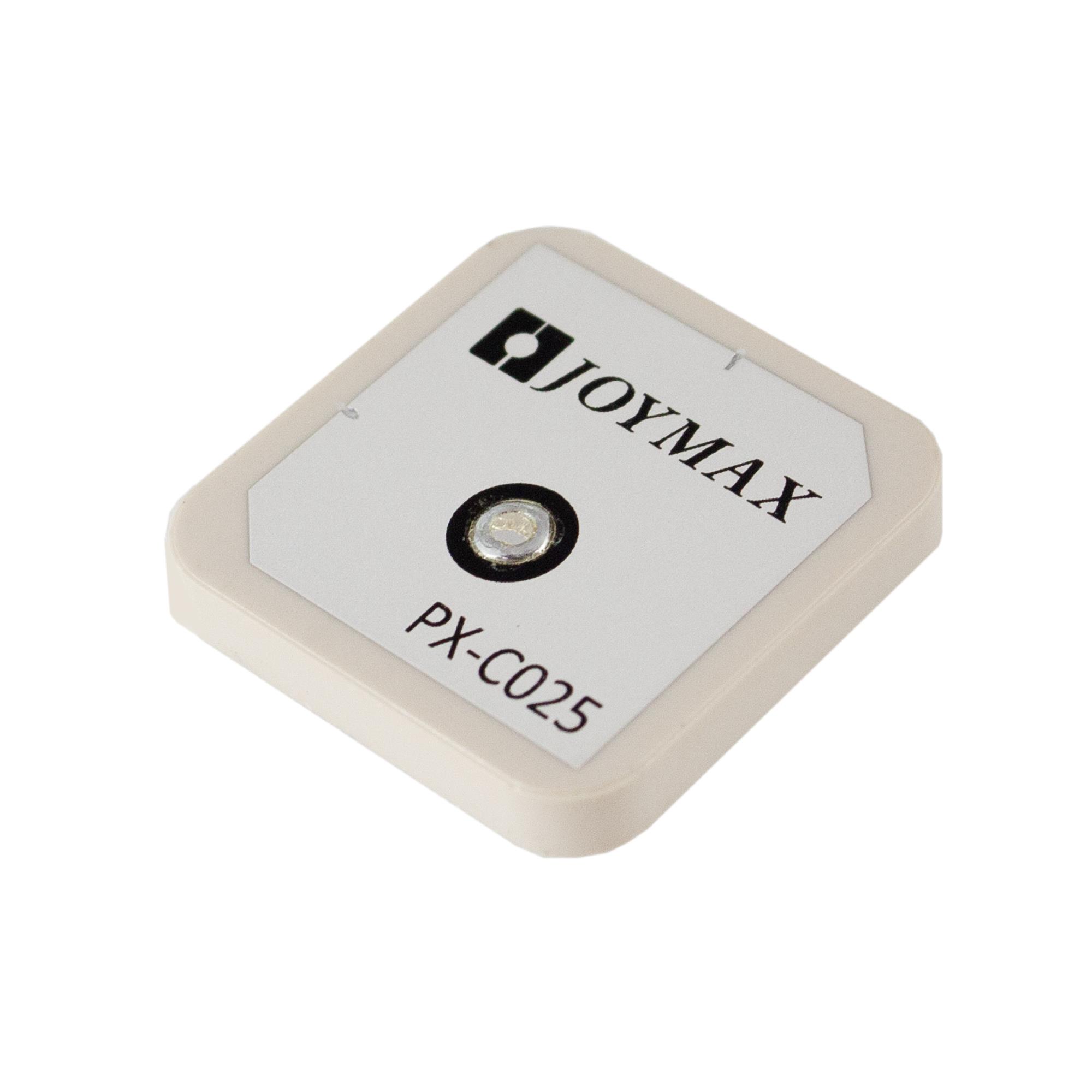

PPX-C025GL1W is listed in the Antennas RF range at ChipApex. The manufacturer field lists Joymax Electronics. Its product description is ANT GNSS L1 CERAMIC PATCH 25X25. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PPX-C025GL1W
- Description：ANT GNSS L1 CERAMIC PATCH 25X25
- Series：-
- Mfr：Joymax Electronics
- Package：Tray
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
- Frequency Range：-
- Antenna Type：Ceramic Patch
- Number of Bands：3
- VSWR：1.4, 2.2, 2.4
- Return Loss：-
- Gain：4dBi, 3.2dBi, 5.2dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：Automotive
- Qualification：AEC-Q200
- Mounting Type：Adhesive
- Height (Max)：0.224" (5.70mm)
- Applications：BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS
- Power - Max：1 W
Antennas RF datasheet and documents for PPX-C025GL1W
Antennas RF Overview
The Joymax Electronics PPX-C025GL1W is a GNSS L1 ceramic patch antenna designed for embedded applications. It supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, BeiDou, and QZSS. The component operates within specific frequency bands centered at 1.561 GHz, 1.575 GHz, and 1.602 GHz, covering ranges from 1.559 GHz to 1.608 GHz. It features right-hand circular polarization (RHCP) and measures 25x25x4 mm. The antenna utilizes a pin-type interface suitable for through-hole soldering and adhesive mounting.
Antennas RF Feature Summary
- Supports multi-constellation GNSS reception including GPS, GLONASS, Galileo, BeiDou, and QZSS
- Features RHCP ceramic patch design with integrated adhesive and pin soldering options
- Compact 25x25x4 mm form factor optimized for embedded integration
Antennas RF Applications
- Global navigation satellite system receivers
- IoT device positioning modules
- Embedded tracking hardware
Antennas RF Procurement Notes
Verify the exact ordering suffix against official Joymax documentation to ensure correct configuration. Confirm mechanical dimensions and mounting requirements match the target PCB layout. Check environmental ratings if operation in harsh conditions is required. Ensure compatibility with the intended RF front-end circuitry for optimal signal integrity.
Antennas RF Selection Notes
Select this component when multi-band GNSS support is required in a compact footprint. The dual-mount capability offers flexibility for assembly processes. Verify that the operating frequency range aligns with the specific satellite constellations needed for the application. Consider the ceramic construction for stability in varying thermal environments.
Antennas RF Part Context
This model belongs to Joymax's line of wireless components for IoT applications. It is an embedded antenna variant distinct from external dome-style or panel-mount designs. The product series includes various RF connectors and cable assemblies, but this specific part focuses on internal GNSS signal acquisition.
Antennas RF FAQ
What mounting methods are supported by the PPX-C025GL1W?
The antenna supports both adhesive mounting and through-hole pin soldering.
Which satellite systems does this antenna support?
It supports GPS, GLONASS, Galileo, BeiDou, and QZSS.
