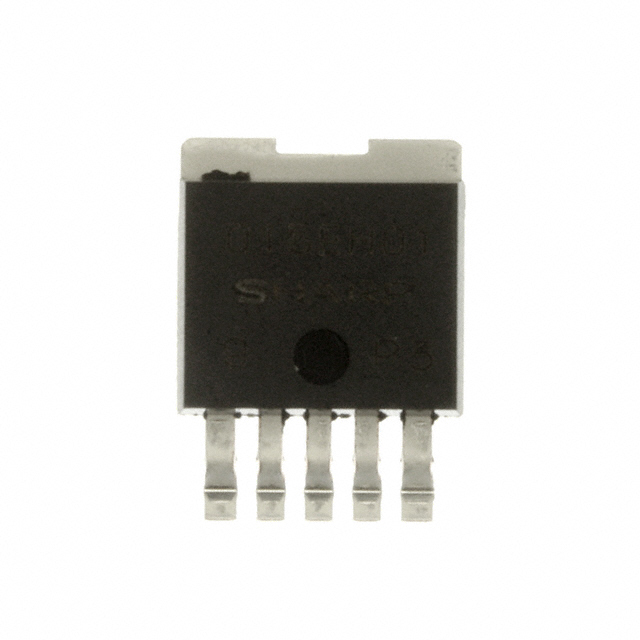

PQ015EH01ZZ

$0.31

Description：IC REG LINEAR 1.5V 1A TO263
Series：*
Mfr：Sharp Microelectronics
Package：Tube

SKU:e0200ece54bc Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Sharp Microelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PQ015EH01ZZ is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Sharp Microelectronics. Its product description is IC REG LINEAR 1.5V 1A TO263. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for PQ015EH01ZZ

Description：IC REG LINEAR 1.5V 1A TO263
Series：*
Mfr：Sharp Microelectronics
Package：Tube
Output Configuration：-
Output Type：-
Number of Regulators：-
Voltage - Input (Max)：-
Voltage - Output (Min/Fixed)：-
Voltage - Output (Max)：-
Voltage Dropout (Max)：-
Current - Output：-
Current - Quiescent (Iq)：-
Current - Supply (Max)：-
PSRR：-
Control Features：-
Protection Features：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for PQ015EH01ZZ

PQ015EH01ZZ

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The PQ015EH01ZZ is a low voltage operation, low power-loss linear voltage regulator manufactured by Sharp Microelectronics. It provides a fixed 1.5V output with a maximum output current of 1A. The device operates with an input voltage range starting from 2.35V, making it suitable for battery-powered applications. Key electrical characteristics include a maximum no-load dissipation current of 2mA and an OFF-state dissipation current of 5μA. It integrates built-in overcurrent and overheat protection functions to ensure reliable operation under fault conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Low voltage operation capability with minimum operating voltage of 2.35V
Integrated overcurrent and overheat protection mechanisms
Ultra-low OFF-state dissipation current for extended battery life

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Peripheral equipment of personal computers
Power supplies for DVD players
Set-top box (STB) power systems

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix ZZ against official Sharp documentation to confirm pinout and thermal specifications. Confirm RoHS compliance status as datasheets may vary by revision. Check component availability and lifecycle status prior to design finalization due to potential obsolescence in legacy PMIC lines.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this regulator for applications requiring stable 1.5V logic levels from low-voltage sources. Ensure input voltage remains above 2.35V for proper regulation. Consider the TO-263 package thermal performance for high ambient temperatures or sustained 1A loads.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This component belongs to the PQ015EH series of low dropout regulators designed for portable electronics. It shares functional similarities with other members like the PQ015EH02ZZ but differs in output voltage and specific package variants within the Sharp PMIC portfolio.
