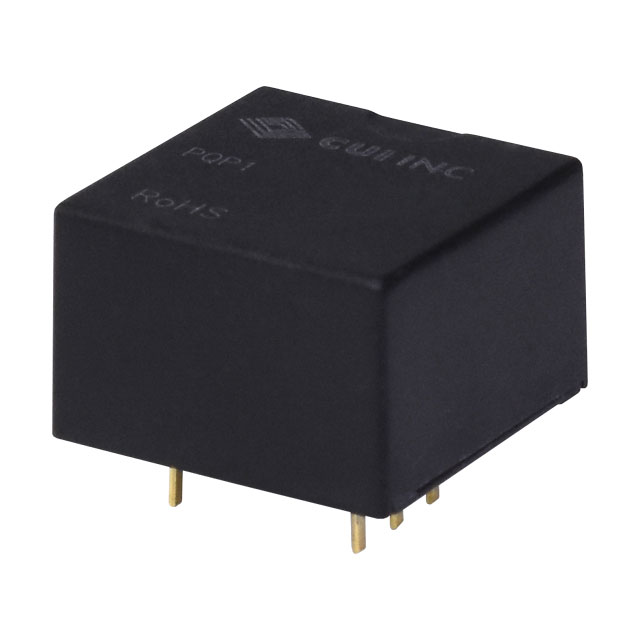

PQP1-D24-S15-D

PQP1-D24-S15-D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC DC CONVERTER 15V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PQP1-D24-S15-D

• Description：DC DC CONVERTER 15V 1W
• Series：PQP1-D
• Mfr：CUI Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：67mA
• Power (Watts)：1 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：78%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 5 Leads
• Size / Dimension：0.55" L x 0.55" W x 0.35" H (14.0mm x 14.0mm x 9.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：EN
• Standard Number：55024; 55032 Class A
• Grade：-
• Qualification：-
