PR1CS450

Antennas RF Overview

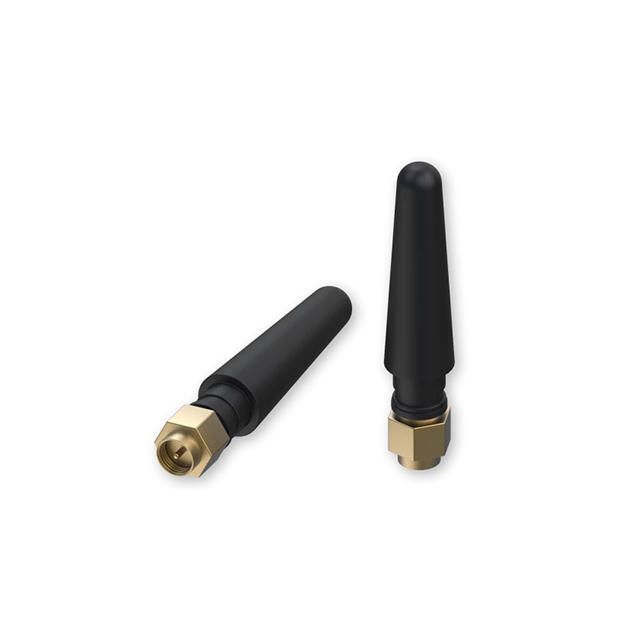

The Teltonika PR1CS450 is a straight, compact mobile antenna designed for LTE connectivity. It operates within a frequency range of 700 to 2700 MHz with linear polarization. The component features a gain of 5 dBi and an input impedance of 50 Ohms. Voltage Standing Wave Ratio (VSWR) is rated at ≤ 1.8. It utilizes a straight SMA male connector for interface. The antenna supports indoor applications and provides stable performance in space-constrained environments.

Antennas RF Feature Summary

• Compact straight design optimized for space-constrained installations
• Linear polarization ensuring stable LTE connectivity performance
• SMA male connector interface for direct mounting compatibility

Antennas RF Applications

• Integration with Teltonika RUT series industrial cellular routers
• Integration with Teltonika TRB series industrial cellular routers
• Indoor LTE mobile connectivity setups requiring compact form factors

Antennas RF Procurement Notes

Verify the specific datasheet version and RoHS compliance details directly from the manufacturer before procurement. Confirm that the SMA male connector type matches your equipment interface requirements. Ensure the operating temperature range aligns with your deployment environment specifications. Cross-reference the part number to avoid confusion with similar models like the PR1CS530 which supports different frequency bands.

Antennas RF Selection Notes

Select this model when deploying Teltonika routers in indoor environments where physical space is limited. The 5 dBi gain and 50 Ohm impedance are standard for general LTE coverage needs. Ensure the application does not require frequencies above 2700 MHz, as this unit is restricted to the 700-2700 MHz band. Consider the straight connector orientation for cable management efficiency.

Antennas RF Part Context

This component belongs to the Teltonika Cellular Antennas category, specifically supporting GSM, LTE, 2G, 3G, 4G, and 5G technologies. It is classified as an indoor antenna product. The PR1CS450 serves as a dedicated accessory for enhancing signal reception in industrial router deployments, distinct from broader spectrum antennas like the PR1CS530.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should verify compatibility with existing Teltonika router models before attempting substitution.
