PR1KC640 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Teltonika. Its product description is 5G COMBO MOBILE MIMO ANTENNA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PR1KC640
- Description：5G COMBO MOBILE MIMO ANTENNA
- Series：-
- Mfr：Teltonika
- Package：Box
- RF Family/Standard：Cellular, Navigation, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：788.5MHz, 1.232GHz, 1.584GHz, 2.2GHz, 2.441GHz, 3.55GHz, 5.412GHz
- Frequency Range：617MHz ~ 960MHz, 1.164GHz ~ 1.3GHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 2.483GHz, 2.4GHz ~ 2.69GHz, 2.9GHz ~ 4.2GHz, 4.9GHz ~ 5.925GHz
- Antenna Type：Dome
- Number of Bands：7
- VSWR：2, 2.5, 3
- Return Loss：-
- Gain：4dBi, 40dBi, 40dBi, 4dBi, 4dBi, 4dBi, 4dBi
- Features：Cable - 3m, LNA
- Termination：RP-SMA Male (2), SMA Male (5)
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Screw Mount
- Height (Max)：3.346" (85.00mm)
- Applications：5G, GNSS, Wi-Fi
- Power - Max：-
Antennas RF datasheet and documents for PR1KC640
Antennas RF Overview

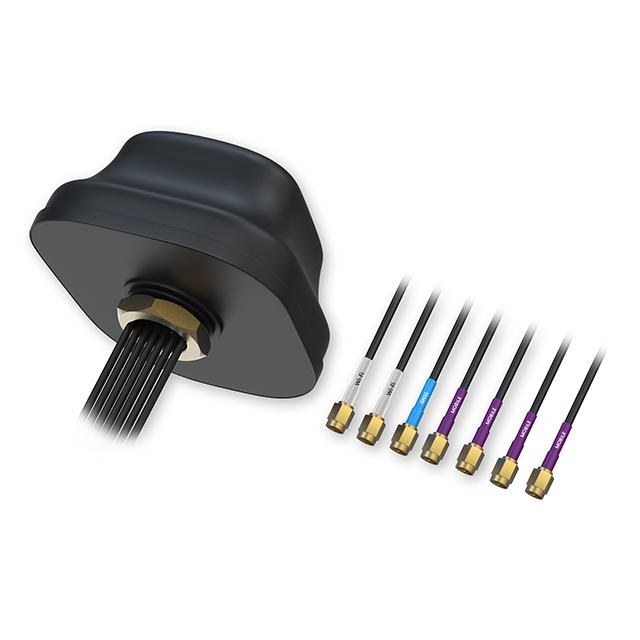

The Teltonika PR1KC640 is a 5G Combo MIMO Mobile/GNSS/WiFi roof-mounted antenna designed for outdoor use. It supports seven frequency bands ranging from 617 MHz to 5.925 GHz, covering cellular, navigation, and WiFi standards. The unit features an IP67 ingress protection rating and operates within a temperature range of -40°C to +85°C. Key electrical parameters include 50 Ohms impedance, VSWR values of 2, 2.5, and 3, and gains varying by band (4 dBi to 40 dBi). It utilizes LMR100 cable with a length of 3 meters and includes an integrated Low Noise Amplifier (LNA) consuming ≤60 mA at 3-12 VDC. Physical dimensions are 85 mm height, with SMA and RP-SMA male connectors.
Antennas RF Feature Summary
- Integrated Low Noise Amplifier (LNA) for enhanced signal reception
- IP67 weather-resistant enclosure for durable outdoor deployment
- Multi-band support for 5G, LTE, GNSS, and WiFi connectivity
- Roof screw-mount installation design
Antennas RF Applications
- Teltonika RUT router signal enhancement
- Vehicle roof mounting for mobile connectivity
- Building roof installation for fixed wireless access
- IoT industrial automation data transmission
Antennas RF Procurement Notes
Verify the specific connector configuration (SMA/RP-SMA count) against your device ports before ordering. Confirm power supply requirements for the internal LNA (3-12 VDC, ≤60 mA) are met in the installation environment. Check local regulatory compliance for the supported frequency bands. Ensure the 3-meter cable length suits the routing distance between the antenna and the receiver module.
Antennas RF Selection Notes
Select this model when high-gain MIMO performance is required for 5G and WiFi simultaneously. The integrated LNA makes it suitable for long cable runs or weak signal areas. Compare gain specifications across bands if directional performance is critical. Ensure the mounting surface can accommodate the screw-mount base and that the IP67 rating meets environmental exposure needs.
Antennas RF Part Context
This component belongs to Teltonika's accessory line for cellular routers and gateways. It complements devices like the RUT series by providing external connectivity solutions. The product replaces older single-band antennas by consolidating mobile, GNSS, and WiFi functions into one low-profile dome unit. It is part of the broader IoT infrastructure ecosystem managed by Teltonika Networks.
Antennas RF Replacement Considerations
The part number alias JCE605NR4WM is documented as a substitute. Verify mechanical fit and connector polarity compatibility when swapping. Ensure the replacement maintains the required IP67 rating and LNA power specifications for equivalent performance.
Antennas RF FAQ
What is the power consumption of the internal LNA?
The Low Noise Amplifier consumes ≤60 mA at a voltage range of 3-12 VDC.
How many frequency bands does the PR1KC640 support?
It supports 7 frequency bands covering Cellular, Navigation, and WiFi standards.
What is the maximum operating temperature?
The maximum operating temperature is +85°C.
