PR1KCI49 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Teltonika. Its product description is 5G COMBO MIMO MOBILE/GNSS ANTENN. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PR1KCI49
- Description：5G COMBO MIMO MOBILE/GNSS ANTENN
- Series：-
- Mfr：Teltonika
- Package：Box
- RF Family/Standard：Cellular, Navigation
- Frequency Group：Wide Band
- Frequency (Center/Band)：780MHz, 1.176GHz, 1.582GHz, 3.7GHz
- Frequency Range：600MHz ~ 960MHz, 1.164GHz ~ 1.189GHz, 1.4GHz ~ 1.606GHz, 1.559GHz ~ 6GHz
- Antenna Type：Dome
- Number of Bands：4
- VSWR：-
- Return Loss：-
- Gain：-
- Features：Cable - 3m
- Termination：SMA Male (5)
- Ingress Protection：IP67, IP69K
- Grade：-
- Qualification：-
- Mounting Type：Screw Mount
- Height (Max)：2.244" (57.00mm)
- Applications：5G, GNSS
- Power - Max：-
Antennas RF datasheet and documents for PR1KCI49
Antennas RF Overview

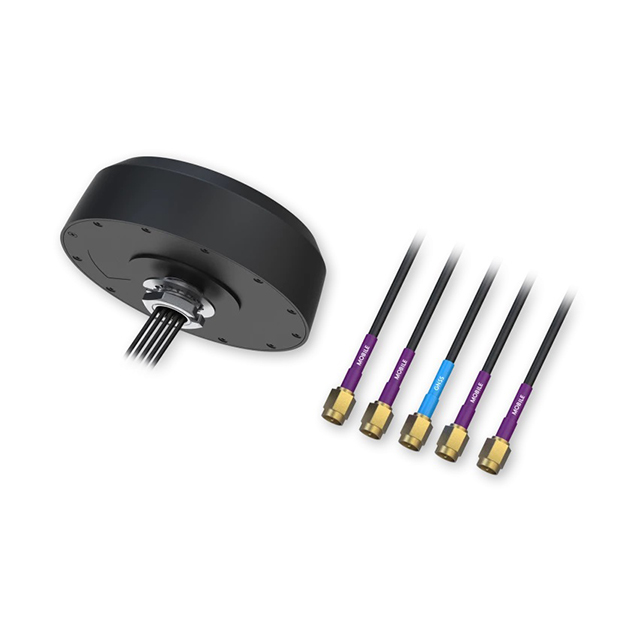

The Teltonika PR1KCI49 is a rugged 5G COMBO MIMO mobile and GNSS roof antenna designed for reliable vehicle and outdoor connectivity. It integrates four mobile MIMO antenna elements and one GNSS antenna into a single unit, featuring SMA connectors. The GNSS component supports frequency ranges of 600–960 MHz and 1400–6000 MHz with linear polarization and a maximum gain of 4.9 dBi. The device operates on a supply voltage of 3–12 VDC and carries an IP67 rating for environmental protection.
Antennas RF Feature Summary
- Integrates four mobile MIMO elements and one GNSS antenna in a single housing
- IP67 rated for robust outdoor and vehicle installation
- SMA connector termination for direct router connection
Antennas RF Applications
- Vehicle roof mounting for 5G routers
- Outdoor connectivity solutions requiring combined cellular and positioning data
- Mobile networking installations maximizing connectivity reliability
Antennas RF Procurement Notes
Verify the specific SMA connector gender and cable length requirements against your router's interface specifications before procurement. Confirm that the 3-12 VDC operating range aligns with your vehicle or site power system. Ensure the IP67 rating meets the environmental exposure standards of the intended deployment location to guarantee long-term durability.
Antennas RF Selection Notes
Select this model when a unified solution for both high-speed 5G cellular data and precise GNSS positioning is required without separate mounting hardware. It is suitable for applications where space constraints prevent installing distinct antennas. Verify compatibility with the target router's supported MIMO configurations and ensure the SMA interface matches the equipment ports.
Antennas RF Part Context
This antenna belongs to Teltonika Networks' portfolio of connectivity accessories designed for industrial and vehicular IoT deployments. It complements their 5G routers by providing dedicated external signal reception capabilities. The product line focuses on enhancing network stability and coverage in challenging environments through integrated multi-band antenna technologies.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. When replacing existing setups, verify that the new antenna's SMA interface and electrical characteristics match the original equipment's requirements to maintain signal integrity.
