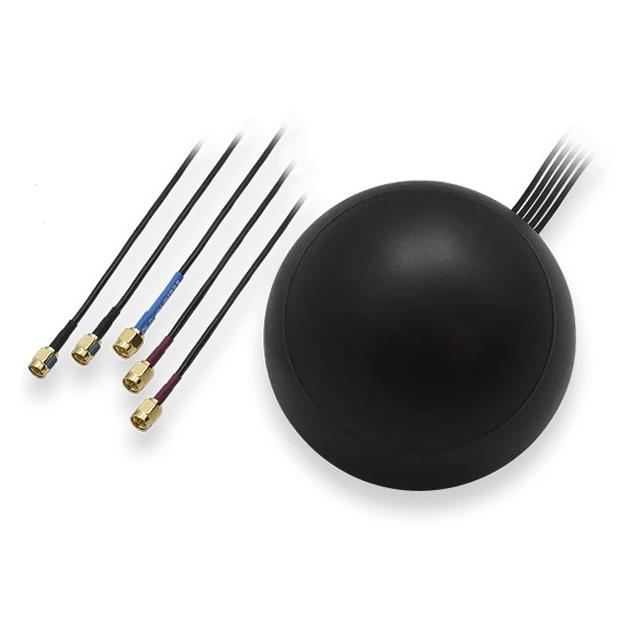

PR1KCO28 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Teltonika. Its product description is COMBO MIMO MOBILE/GNSS/WIFI ROOF. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PR1KCO28
- Description：COMBO MIMO MOBILE/GNSS/WIFI ROOF
- Series：-
- Mfr：Teltonika
- Package：Box
- RF Family/Standard：Navigation, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：829MHz, 1.592GHz, 2.2GHz, 2.44GHz, 5.362GHz
- Frequency Range：698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.48GHz, 2.4GHz ~ 2.69GHz, 4.9GHz ~ 5.825GHz
- Antenna Type：Dome
- Number of Bands：5
- VSWR：2.5, 3
- Return Loss：-
- Gain：3dBi, 3dBi, 2dBi, 2dBi
- Features：Cable - 3m, LNA
- Termination：RP-SMA Male (2), SMA Male (3)
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Screw
- Height (Max)：2.087" (53.00mm)
- Applications：GNSS, LTE, Wi-Fi
- Power - Max：-
Antennas RF datasheet and documents for PR1KCO28
Antennas RF Overview
The Teltonika PR1KCO28 is a Combo MIMO Mobile/GNSS/WiFi Roof SMA Antenna designed for robust connectivity. It supports Mobile frequencies of 600-5000 MHz with 4 dBi gain, WiFi at 2400-5825 MHz with 2 dBi gain, and GNSS at 1575.42-1610 MHz with RHCP polarization. The unit features an IP67 rating, 50 Ohm impedance, and includes a 3-meter LMR100 cable with SMA-Male connectors. Operating temperature ranges from -40°C to +80°C.
Antennas RF Feature Summary
- Integrates MIMO mobile, GNSS, and WiFi reception into a single IP67-rated housing
- Includes integrated Low Noise Amplifier (LNA) with 28±2 dB gain
- Designed for roof mounting using screw installation style
Antennas RF Applications
- Motorhome and RV connectivity systems
- Marine vessel communication setups
- Industrial IoT gateway installations requiring combined signal reception
Antennas RF Procurement Notes
Verify component authenticity through authorized distributors or the manufacturer's official channels. Confirm that the received hardware matches the specific model designation and physical specifications. Ensure all documentation provided aligns with the original product data sheet to guarantee performance reliability.
Antennas RF Selection Notes
This component is suitable for applications requiring simultaneous cellular, satellite, and wireless network integration. Its weatherproof design allows for outdoor deployment in harsh environments. Consider the required cable length and connector type compatibility with existing base stations before implementation.
Antennas RF Part Context
The PR1KCO28 belongs to Teltonika's antenna portfolio, specifically engineered for vehicle-mounted solutions. It consolidates multiple radio frequency functions into one compact unit, reducing installation complexity compared to separate antennas. This approach optimizes space on roofs while maintaining high signal integrity across diverse frequency bands.
Antennas RF Replacement Considerations
Public records indicate this specific part number has been discontinued. Users should seek alternative models from the same manufacturer that offer similar MIMO and GNSS capabilities. Verify that any substitute maintains compatible connector types and frequency coverage.
