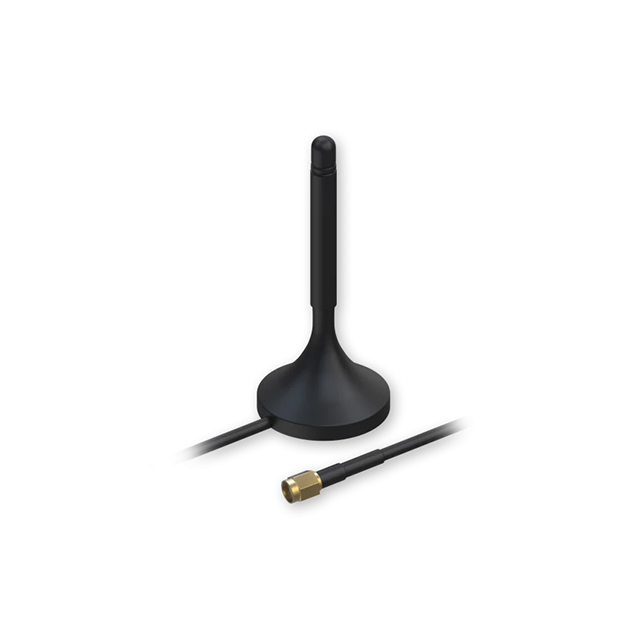

PR1KRT25

$7.51

Description：BLUETOOTH MAGNETIC SMA ANTENNA
Series：-
Mfr：Teltonika
Package：Bulk

SKU:6a3e3c9008de Category: RF Antennas Brand: Teltonika

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PR1KRT25 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Teltonika. Its product description is BLUETOOTH MAGNETIC SMA ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PR1KRT25

Description：BLUETOOTH MAGNETIC SMA ANTENNA
Series：-
Mfr：Teltonika
Package：Bulk
RF Family/Standard：Bluetooth
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2.5
Return Loss：-
Gain：2.5dBi
Features：Cable - 1.5m
Termination：RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：3.260" (82.80mm)
Applications：Bluetooth
Power - Max：-

Antennas RF datasheet and documents for PR1KRT25

PR1KRT25

Antennas RF Overview

The Teltonika PR1KRT25 is a Bluetooth antenna designed for the 2.4-2.5 GHz frequency range. It features a magnetic mounting style and an SMA connector. The antenna provides a gain of 2.5 dBi with a linear polarization. It has an impedance of 50 Ohms and a VSWR of 2.5. The cable length is 1.5 meters, utilizing RG174 type cabling.

Antennas RF Feature Summary

Magnetic mounting design for flexible installation
SMA connector interface for compatibility
Optimized for Bluetooth frequency bands

Antennas RF Applications

Bluetooth device connectivity
Wireless sensor networks
IoT data transmission

Antennas RF Procurement Notes

Verify the specific connector gender and cable termination requirements against the target device specifications before ordering. Confirm that the magnetic base strength meets the installation surface constraints. Ensure the operating environment does not exceed the component's thermal limits. Check regional regulatory compliance for the 2.4 GHz band usage in the deployment area.

Antennas RF Selection Notes

Select this model when a compact, magnetically attachable solution is required for short-range wireless communication. It is suitable for applications where permanent mounting hardware is impractical or temporary setup is needed. Consider the 1.5-meter cable length for reach requirements relative to the host device.

Antennas RF Part Context

This component belongs to the Teltonika antenna portfolio, specifically targeting Bluetooth applications. It serves as an accessory for enhancing wireless signal reception and transmission in IoT and industrial environments. The product complements Teltonika's broader ecosystem of connectivity solutions.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should verify compatibility with existing systems if sourcing alternatives from other manufacturers.
