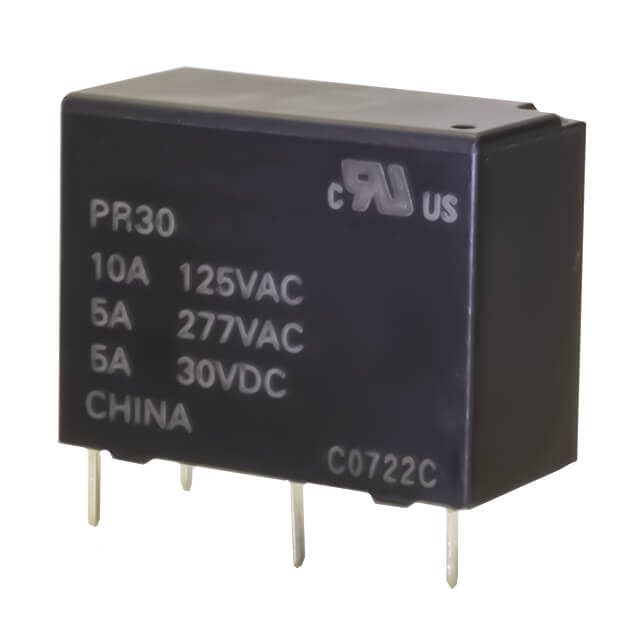

PR30-9V-450-1A-E

PR30-9V-450-1A-E is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Same Sky (Formerly CUI Devices). Its product description is 20.5 X 10.2 X 15.3 MM, 9 V, 10 A. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for PR30-9V-450-1A-E

• Description：20.5 X 10.2 X 15.3 MM, 9 V, 10 A
• Series：PR30
• Mfr：Same Sky (Formerly CUI Devices)
• Package：Box
• Mounting Type：Through Hole
• Coil Voltage：9VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：400VAC, 150VDC - Max
• Load - Max Switching：2770VA, 150W
• Coil Current：50 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：Class B
• Must Operate Voltage：6.8 VDC
• Must Release Voltage：0.9 VDC
• Operating Temperature：-40°C ~ 90°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：cURus
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：8 ms
• Release Time：5 ms
