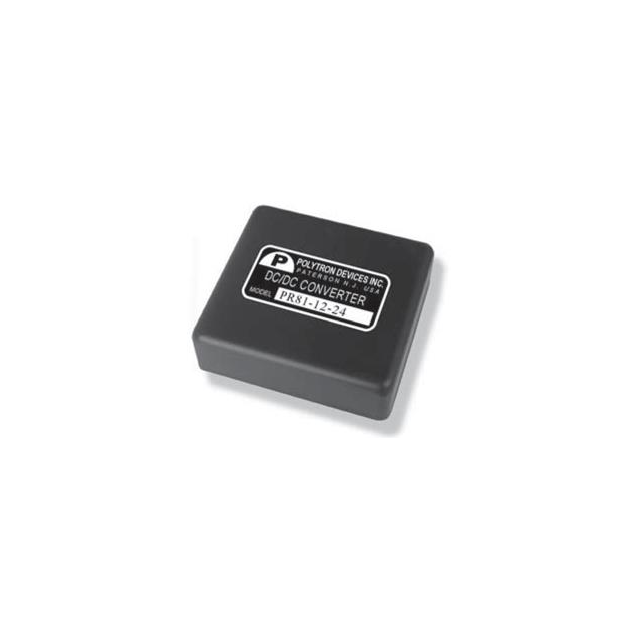

PR81-15-24

PR81-15-24 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Polytron. Its product description is DC DC CONVERTER +/-15V 2.25W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PR81-15-24

• Description：DC DC CONVERTER +/-15V 2.25W
• Series：PR (10W)
• Mfr：Polytron
• Package：Tray
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：150mA, 150mA
• Power (Watts)：2.25 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-25°C ~ 71°C
• Efficiency：65%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for PR81-15-24
