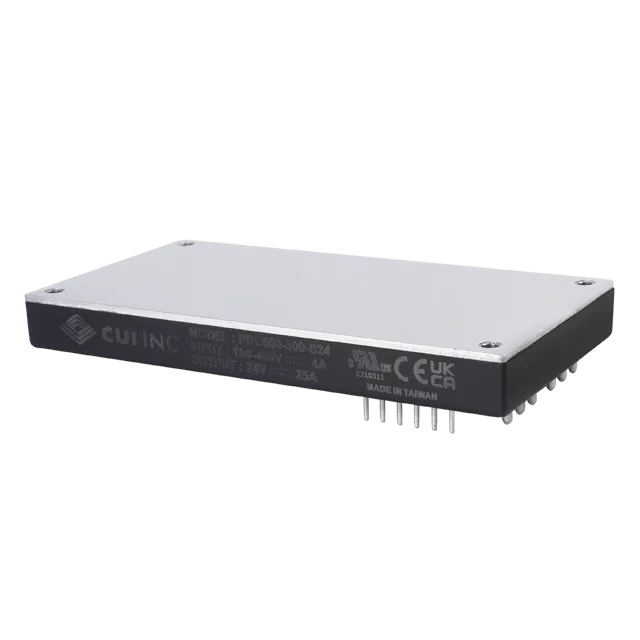

PRC600-300-S24

PRC600-300-S24 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC-DC, ISOLATED, 600 W, 180~425. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PRC600-300-S24

• Description：DC-DC, ISOLATED, 600 W, 180~425
• Series：PRC600 (600W)
• Mfr：CUI Inc.
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：180V
• Voltage - Input (Max)：400V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：25A
• Power (Watts)：600 W
• Voltage - Isolation：4.2 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Load Sharing, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：90.50%
• Mounting Type：Through Hole
• Package / Case：Full Brick
• Size / Dimension：4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm)
• Supplier Device Package：Full Brick
• Control Features：Enable, Active High
• Approval Agency：CE, cURus, UKCA
• Standard Number：60950-1; 62368-1
• Grade：-
• Qualification：-
