Product Detailed Parameters
- Description：IGBT MODULE, 1IN1, BRAKE CHOPPER
- Series：-
- Mfr：KYOCERA AVX
- Package：Bulk
- IGBT Type：-
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：2V @ 15V, 75A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：290 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：8000 pF @ 25 V
Download product information
Overview

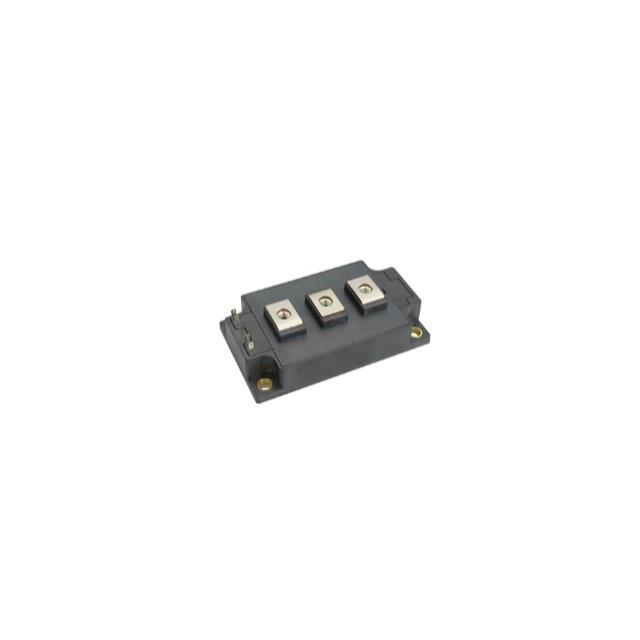

The PRHMB75W12 is a single IGBT module manufactured by KYOCERA AVX, designed for high-power applications. It features a collector-emitter voltage rating of 1200 V and a continuous collector current capacity of 75 A at 25°C. The device incorporates an integrated fast recovery diode (FRD) within a one-in-one chopper circuit configuration. Key electrical parameters include a maximum collector-emitter saturation voltage of 1.5 V and a gate-emitter leakage current of 1 µA. The module supports operating temperatures ranging from -40°C to +150°C and utilizes screw mount installation.
Feature Summary
- Integrates an IGBT with a fast recovery diode in a single chopper circuit package
- Supports high thermal performance with a maximum junction temperature of 150°C
- Designed for chassis mounting via screw terminals
Applications
- Industrial motor drives
- Power conversion systems
- Chopper circuits
Procurement Notes
Verify the specific revision status and availability directly with KYOCERA AVX or authorized distributors, as component lifecycle stages may affect supply continuity. Confirm mechanical dimensions and pinout compatibility with existing board layouts before finalizing procurement decisions. Ensure that thermal management solutions align with the specified operating temperature range and power dissipation requirements.
Selection Notes
Select this module for applications requiring robust high-voltage switching capabilities combined with integrated freewheeling diode functionality. The 1200 V rating suits medium-to-high voltage industrial environments. Consider the 75 A current rating relative to thermal constraints and cooling methods. Verify that the screw mount interface matches the mechanical design of the target assembly.
Part Context
This component belongs to the IGBT modules category within the KYOCERA AVX portfolio. It represents a discrete power semiconductor solution integrating both switching and rectification functions. The product line targets demanding industrial and power electronics applications where reliability and compact packaging are essential for system performance.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for potential alternatives or cross-reference options.
