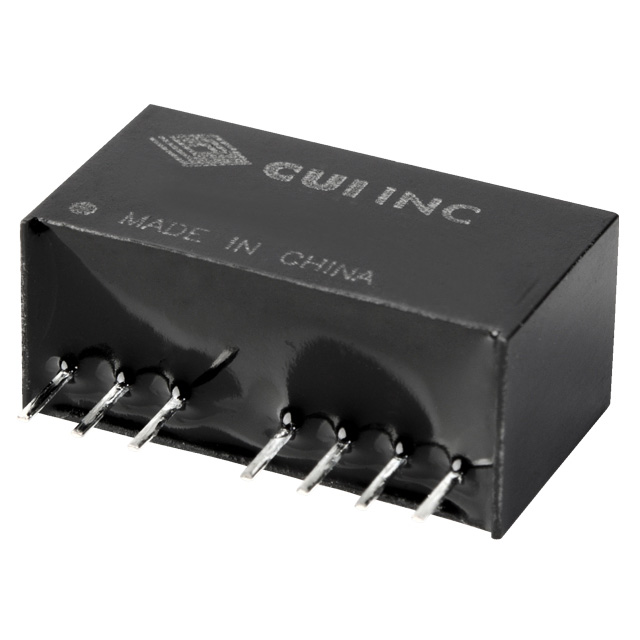

PRMC3-D24-S9-S

PRMC3-D24-S9-S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC DC CONVERTER 9V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PRMC3-D24-S9-S

• Description：DC DC CONVERTER 9V 3W
• Series：PRMC3-S (3W)
• Mfr：CUI Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：333mA
• Power (Watts)：3 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：EN
• Standard Number：55024; 55032 Class A
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PRMC3-D24-S9-S
