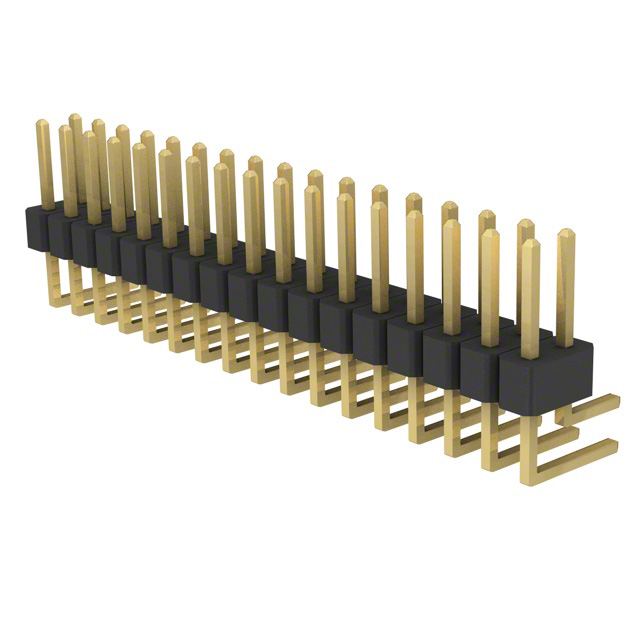

PRPC017DBAN-M71RC is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Sullins Connector Solutions. Its product description is CONN HEADER R/A 34POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for PRPC017DBAN-M71RC
- Description：CONN HEADER R/A 34POS 2.54MM
- Series：-
- Mfr：Sullins Connector Solutions
- Package：Bulk
- Connector Type：Header, Breakaway
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：34
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：0.197" (5.00mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polybutylene Terephthalate (PBT)
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A per Contact
- Voltage Rating：-
Headers, Male Pins datasheet and documents for PRPC017DBAN-M71RC
Headers, Male Pins Overview
The PRPC017DBAN-M71RC is a male pin header connector manufactured by Sullins Connector Solutions. It features a right-angle through-hole mounting style with 34 positions arranged in two rows. The connector utilizes a 0.100 inch (2.54mm) pitch and a 0.100 inch row spacing. Contact materials are brass with gold plating, rated for 3A per contact. It operates within a temperature range of -40°C to 105°C and uses PBT insulation rated UL94 V-0.
Headers, Male Pins Feature Summary
- Right-angle through-hole design for board-to-board or cable connections
- Gold-plated brass contacts ensuring reliable signal transmission
- Dual-row configuration providing high density in a compact footprint
Headers, Male Pins Applications
- Industrial control systems requiring robust interconnects
- Consumer electronics utilizing board-to-board interfaces
- Telecommunications equipment needing reliable signal paths
Headers, Male Pins Procurement Notes
Verify the specific suffix M71RC against official datasheets to confirm exact plating thickness and material specifications. Confirm availability status as distribution channels may vary. Ensure compatibility with mating connectors regarding pitch and row spacing before procurement.
Headers, Male Pins Selection Notes
Select this component when a dual-row right-angle header is required for 2.54mm pitch applications. Consider the 3A current rating and operating temperature range for environmental suitability. Verify mechanical fit for PCB assembly constraints.
Headers, Male Pins Part Context
This part belongs to the PRPC series of rectangular connectors from Sullins Connector Solutions. The series offers various position counts and configurations for diverse electronic interconnection needs. It is designed for general-purpose use in commercial and industrial electronics.
Headers, Male Pins Replacement Considerations
Compatible substitutes include other 34-position, 2.54mm pitch headers from Sullins such as PRPC017DBBN-M71RC if black housing is preferred. Verify identical mechanical dimensions and electrical ratings before substitution.
