PRPC027SFAN-RC

Headers, Male Pins Overview

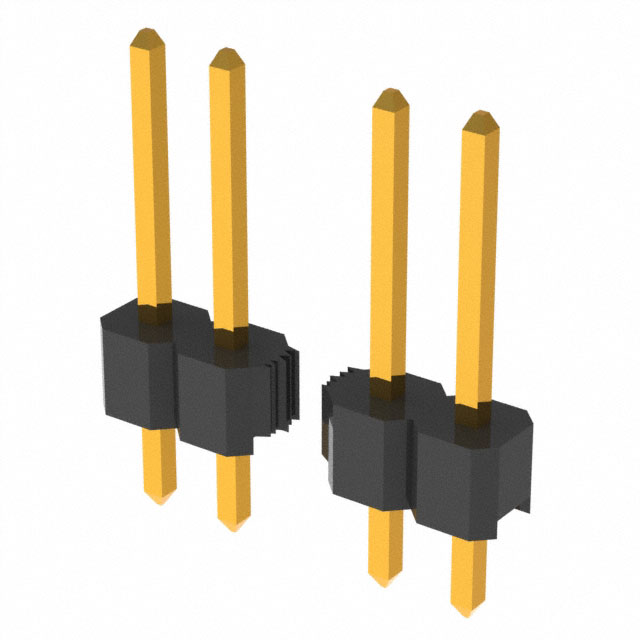

The PRPC027SFAN-RC is a vertical board-to-board or cable header connector manufactured by Sullins Connector Solutions. It features a single row of 27 male pin contacts with a 0.100 inch (2.54mm) mating pitch. Designed for through-hole termination, the connector utilizes gold-plated brass contacts and a black PBT insulator rated UL94 V-0. It supports a current rating of 3A per contact and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical breakaway header design for board-to-board or cable applications
• Gold-plated brass contacts ensure reliable signal transmission
• UL94 V-0 rated black PBT insulation for thermal stability
• Through-hole termination with push-pull locking mechanism

Headers, Male Pins Applications

• Automotive control systems integration
• General electronic circuit board interconnections
• Industrial equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact contact length and plating thickness specifications. Ensure compatibility with mating connectors regarding pitch and row configuration. Confirm RoHS compliance status matches project requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row vertical header with 2.54mm spacing is required. The 3A current rating and -40°C to 105°C operating range suit standard industrial environments. Verify that the through-hole mounting style aligns with the PCB layout constraints and that the breakaway feature allows for flexible panelization during assembly.

Headers, Male Pins Part Context

This part belongs to the PRPC series of rectangular connectors from Sullins Connector Solutions. The series offers various pin counts and configurations for board-to-board and cable connections. The SFAN suffix typically denotes specific physical dimensions and termination styles within the product family.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 27-position, 2.54mm pitch vertical headers from manufacturers such as Samtec or Molex. Ensure mechanical footprint and electrical ratings match exactly. Cross-reference mating part numbers to guarantee proper engagement and locking mechanism compatibility.
