PS-520Q

Overview

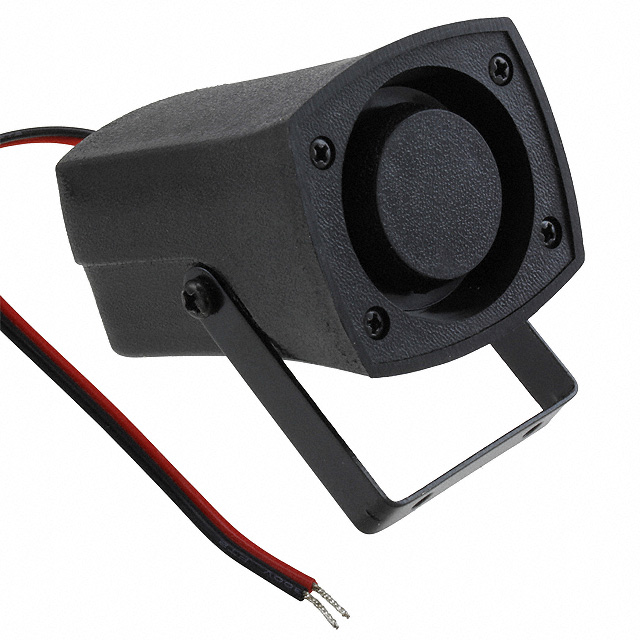

The PS-520Q is an industrial piezoelectric alarm from Mallory Sonalert. It operates on a constant tone at 105 dB with a frequency of 2.5 kHz. Rated for 5-15 VDC, it draws 200 mA current. The unit features wire lead termination and bracket mount installation. Dimensions are 45 mm x 58 mm x 40 mm.

Feature Summary

• Piezoelectric construction for reliable audio signaling
• Bracket mounting style for secure panel integration
• Constant tone output for clear auditory alerts

Applications

• Industrial machinery status indication
• Equipment fault warning systems
• Control panel audio alerts

Procurement Notes

Verify the specific voltage rating and physical dimensions against the official datasheet before procurement. Confirm that the bracket mounting style and wire lead termination meet the mechanical requirements of the target enclosure. Ensure the operating temperature range aligns with the environmental conditions of the intended application site.

Selection Notes

Select this model when a high-decibel constant tone is required for industrial environments. The bracket mount design facilitates easy installation on control panels or equipment housings. Verify compatibility with the available DC power supply voltage within the specified 5-15 VDC range to ensure proper operation.

Part Context

This component belongs to the PS series of industrial alarms manufactured by Mallory Sonalert Products Inc. The series is designed for robust performance in demanding environments. The PS-520Q specifically utilizes a piezoelectric transducer to generate audible warnings for machinery and control systems.

FAQ

What is the sound pressure level of the PS-520Q?

The sound pressure level is 105 dB.

How is the PS-520Q mounted?

It uses a bracket mount installation style.
