PS-562Q

Overview

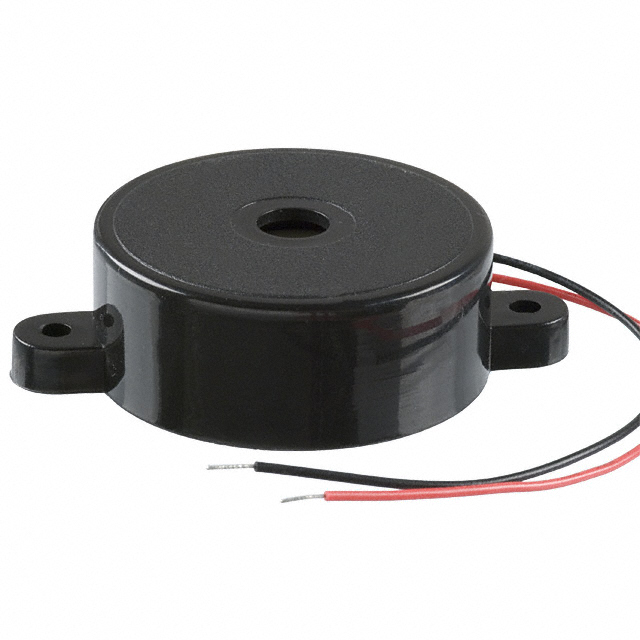

The PS-562Q is a piezoelectric industrial alarm manufactured by Mallory Sonalert Products Inc. It operates on a rated voltage of 12 VDC, with an acceptable input range of 5 to 15 VDC. The device draws a current of 200 mA and produces a sound pressure level of 105 dB at a warble tone frequency of 2.5 kHz. It features wire lead termination and bracket mount installation. Physical dimensions are 54 mm x 41 mm.

Feature Summary

• Generates a warble acoustic signal for high-visibility alerting
• Designed for industrial environments requiring robust audio indicators
• Utilizes piezoelectric technology for reliable operation

Applications

• Industrial machinery status indication
• Factory floor safety alarms
• Equipment fault signaling systems

Procurement Notes

Verify the specific suffix codes against the official Mallory Sonalert datasheet to confirm exact electrical ratings and mounting configurations. Ensure the selected variant matches the required operating voltage and acoustic output specifications for the target application environment.

Selection Notes

Select this component when a high-decibel warble tone is required for industrial audible alerts. Consider the 12 VDC rating and 200 mA current draw during circuit design. Verify that the bracket mount style fits the available panel space and structural requirements of the enclosure.

Part Context

This part belongs to the PS series of industrial alarms from Mallory Sonalert. The series focuses on durable, high-output piezoelectric indicators suitable for demanding operational settings where clear auditory warnings are critical for safety and process monitoring.

Replacement Considerations

Consult the manufacturer's cross-reference documentation for verified substitutes. Ensure any replacement maintains the 105 dB output and 12 VDC compatibility.
