PS-733PRQ

Overview

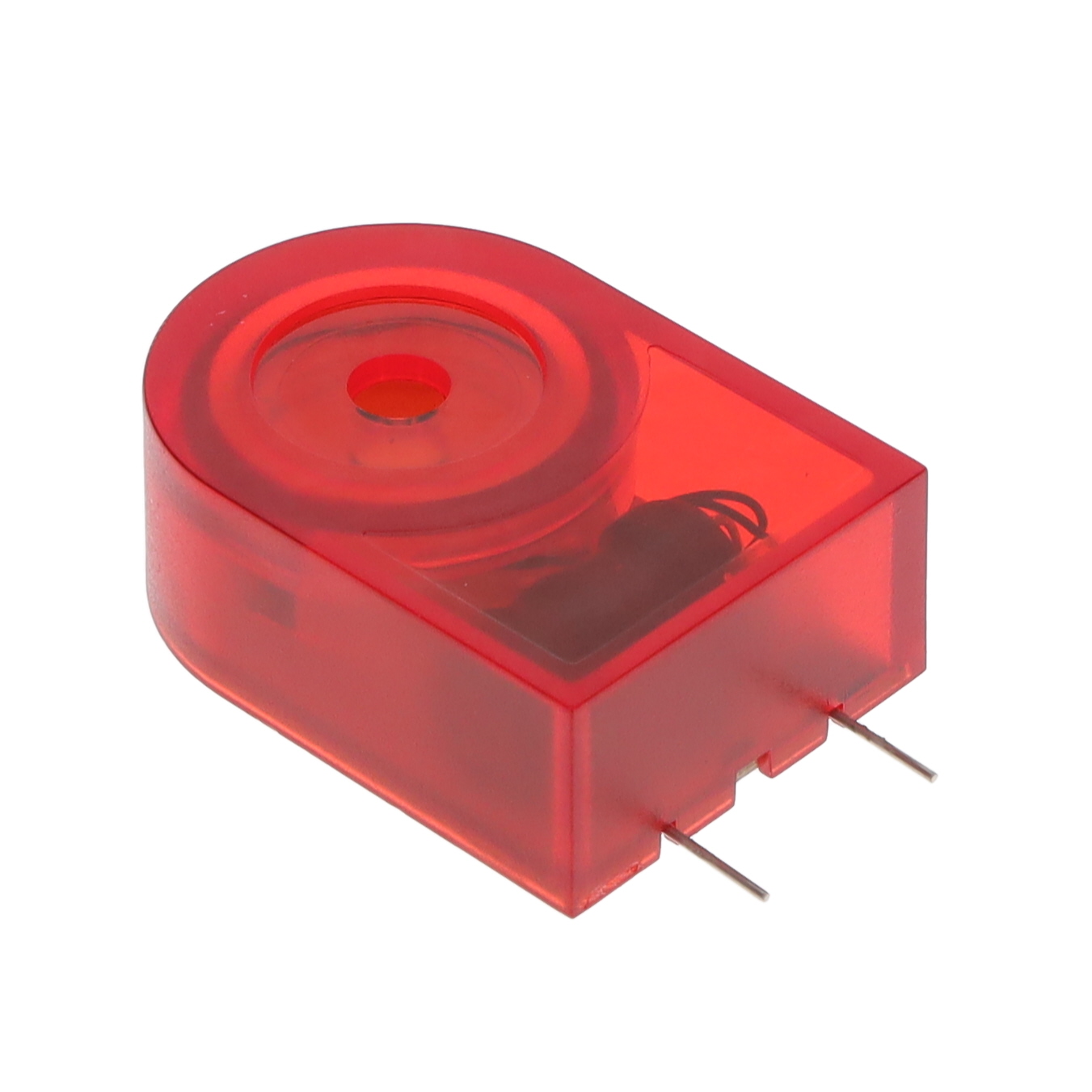

The Mallory Sonalert PS-733PRQ is a piezoelectric buzzer designed for board-mount applications. It operates on a DC voltage range of 5V to 15V and produces a sound pressure level of 95dB. The device emits an oscillating tone with a frequency between 2.5Hz and 4.5Hz. Its physical dimensions are 32mm x 46mm x 16mm, and it features red coloration.

Feature Summary

• Piezoelectric technology for reliable audio signaling
• Oscillating tone output for distinct alerting
• Board-mount installation style

Applications

• Industrial equipment status indication
• Consumer appliance alarm systems
• Transportation vehicle monitoring

Procurement Notes

Verify the specific operating voltage requirements against the system design, as the component supports a 5V to 15DC range. Confirm that the board-mount form factor aligns with the PCB layout constraints. Ensure the 95dB acoustic output meets the environmental noise requirements for the intended application scenario.

Selection Notes

Select this model when a low-profile board-mount solution is required for audible alerts. The wide input voltage range allows flexibility in power supply design. The oscillating frequency provides a distinct auditory cue compared to continuous tones, suitable for distinguishing critical alarms from standard indicators in mixed-signal environments.

Part Context

Mallory Sonalert Products Inc. manufactures the PS-733PRQ under the Sonalert brand. The company specializes in high-performance sound and visual warning devices, including panel alarms, stack lights, and medical alarms. This product line serves industrial, consumer, transportation, and medical sectors globally.

FAQ

What is the oscillation frequency range?

The PS-733PRQ generates an oscillating tone with a frequency range of 2.5Hz to 4.5Hz.

Is this component suitable for panel mounting?

No, the PS-733PRQ is specifically designed for board-mount installation, not panel mounting.
