PS-733WDR-SQ

Overview

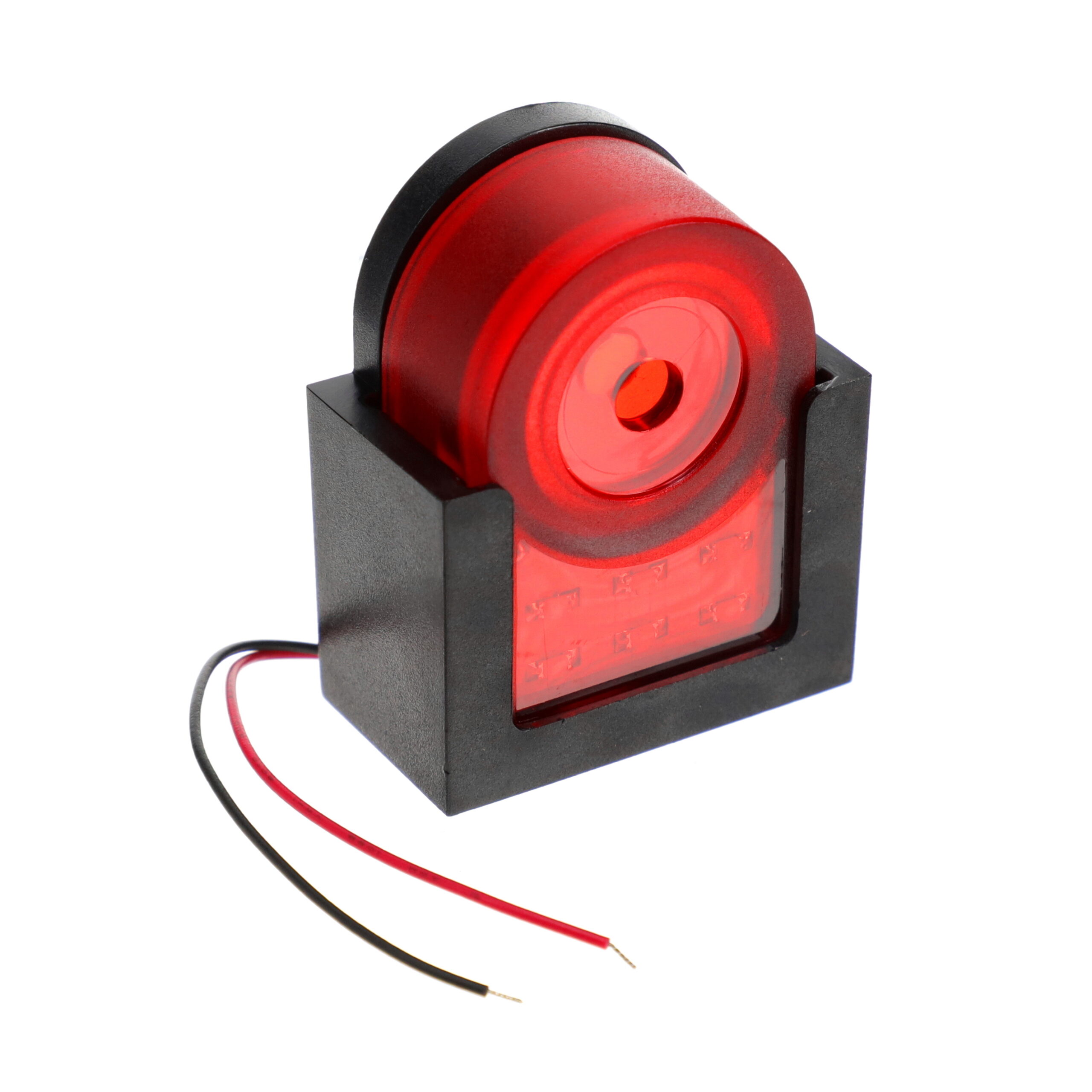

The PS-733WDR-SQ is a piezoelectric buzzer from Mallory Sonalert Products Inc., designed for industrial audio indication. It features an internally driven circuit requiring only DC input, eliminating the need for external oscillators. The device operates within a voltage range of 5 to 15V and produces a sound pressure level of 95dB. It generates tones in the frequency range of 2.5kHz to 4.5kHz. The unit utilizes a flange-style mounting configuration with dimensions of approximately 32mm x 46mm x 16mm.

Feature Summary

• Internally driven piezoelectric technology for simplified integration
• Flange-style mechanical mounting for secure panel installation
• Wide operating voltage compatibility for flexible power supply design

Applications

• Industrial machinery status indication
• Control panel alarm systems
• Automotive diagnostic signaling

Procurement Notes

Verify the specific part number suffix against official Mallory Sonalert documentation to confirm exact electrical parameters and physical dimensions. Ensure the selected variant matches the required voltage range and mounting style for the target application environment. Cross-reference datasheets for environmental ratings before deployment.

Selection Notes

Select this component when an internally driven solution is required to reduce board space and design complexity. The wide voltage tolerance allows operation across varying DC supply conditions common in industrial settings. Confirm that the 95dB output level meets the ambient noise requirements of the intended installation site.

Part Context

This component belongs to the Mallory Sonalert industrial buzzer portfolio, which specializes in reliable audio warning devices. The brand is recognized for producing durable indicators used in demanding environments. This specific model represents a standard flange-mounted option within their broader lineup of piezoelectric alerting hardware.

Replacement Considerations

Consult official Mallory Sonalert substitution guides for verified equivalents. Generic replacements may not match the internal drive characteristics or acoustic profile. Verify pinout and mounting hole patterns if considering alternative manufacturers.
