Product Detailed Parameters
- Description：LINE FILTER 80VDC 6A PANEL MOUNT
- Series：P, Corcom
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：DC
- Configuration：-
- Voltage - Rated DC：80V
- Voltage - Rated AC：-
- Current：6:00 AM
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：CSA, UL, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Panel Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

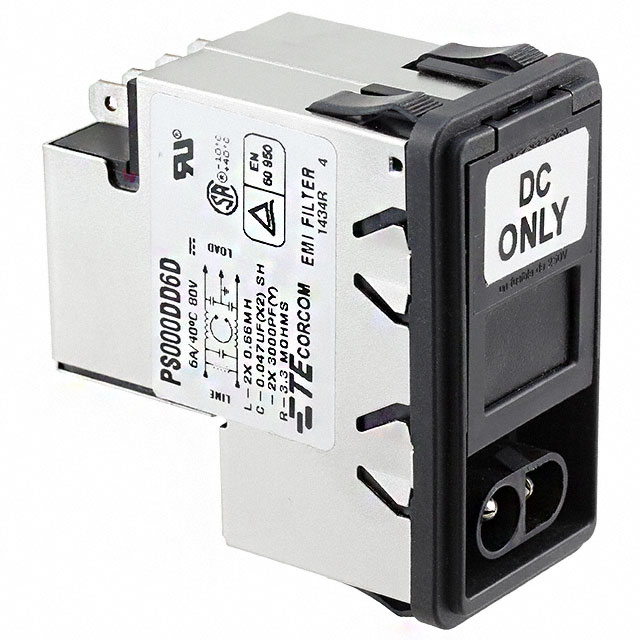

The PS000DD6D is a single-phase DC EMC/EMI line filter manufactured by TE Connectivity Corcom Filters. It is rated for 6 A current and 80 VDC voltage. The component utilizes quick connect termination methods and is designed for panel mount installation. This filter functions to reduce electrical noise and interference within power systems, ensuring compliance with electromagnetic compatibility standards in direct current applications.
Feature Summary
- Designed to eliminate EMI-RFI noise from power lines
- Suitable for telecom, datacom, medical, and commercial/industrial environments
Applications
- Telecommunications equipment
- Data communication systems
- Medical devices
- Commercial and industrial machinery
Procurement Notes
Verify the specific datasheet for the PS000DD6D to confirm exact dimensional tolerances and mounting hole patterns prior to integration. Ensure that the quick connect terminal specifications match the mating connector requirements of the target system. Cross-reference the 80VDC rating against the actual operating voltage to prevent derating issues. Confirm panel thickness compatibility with the filter's mechanical retention design.
Selection Notes
Select this component when a single-phase DC filter is required for noise suppression in low-voltage applications. The 6A rating suits moderate power loads where EMI reduction is critical. Consider the quick connect termination for simplified assembly processes. Evaluate the physical size constraints against the available panel space for the panel mount configuration.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, which offers a wide range of single and three-phase designs. The series includes IEC inlets and power entry modules rated from 3 to 1600A. These filters are engineered to control EMI emissions and susceptibility across various industrial and commercial sectors.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical ratings and mechanical dimensions.
