PS000DDXD

Overview

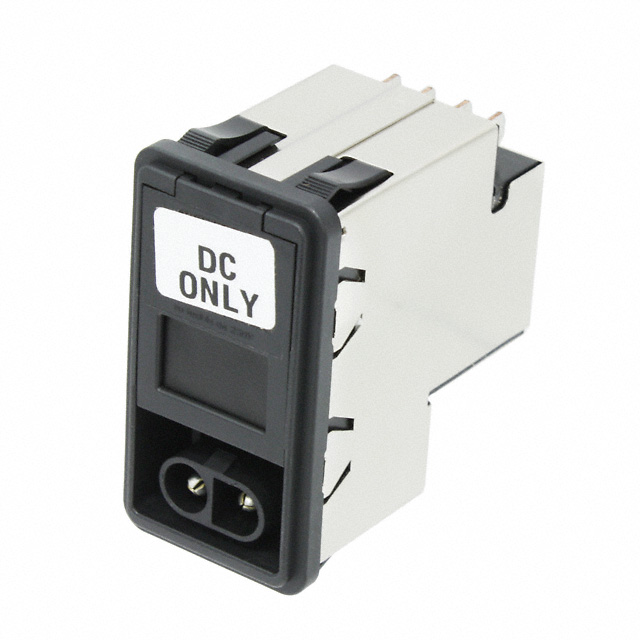

The PS000DDXD is a single-phase EMC/EMI line filter manufactured by TE Connectivity Corcom Filters. It features a single-stage configuration designed for general-purpose applications. The component has a current rating of 10 A and an operating voltage of 80 VDC. Input termination utilizes a 2-pin connector with high-current pins, while output termination employs .187" Faston connectors. It supports panel mounting and operates within a temperature range of -10°C to 40°C.

Feature Summary

• Single-stage EMC/EMI filtering for power line noise suppression
• Quick connect termination interface for simplified assembly
• Panel mount design for secure installation

Applications

• Power supplies
• Battery chargers
• Portable devices
• Energy-efficient systems

Procurement Notes

Verify the product status as obsolete before procurement planning. Confirm that the 80V DC rating aligns with system requirements, as AC-rated alternatives may be necessary for different applications. Ensure compatibility with the specified input and output termination types during integration.

Selection Notes

Select this component for low-voltage DC applications requiring 10 A filtering. The single-stage design suits general-purpose noise reduction needs. Verify that the operating temperature range of -10°C to 40°C meets environmental conditions. Check certification requirements against CSA, UL, and VDE standards.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filter modules. The PS000DDXD represents a specific variant optimized for single-phase DC circuits. It is distinct from AC-rated filters in the same family due to its lower voltage rating and specific termination style.

Replacement Considerations

No public confirmed substitute part numbers are available for this obsolete component. Consider evaluating other Corcom models with similar termination styles if availability permits.
